IRM Series     01~90W AC-DC PCB-Mount Green Power Module                             WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ 1.8"x1"compact size                                                                                                   ‧ Industrial electrical  equipment

‧ Universal input 85~305VAC                                                                                       ‧ Mechanical equipment

‧ No load power consumption<0.1W                                                                         ‧ Factory automation equipment

‧ EMI Class B without additional components                                                          ‧ Hand-held electronic device

‧ Wide operating temp range -30~70℃

‧ Protections:Short circuit /Overload/Over voltage

· Cooling by free air convection

‧ lsolation Class II

‧ Pass LPS

‧ 3 years warranty

■ Description

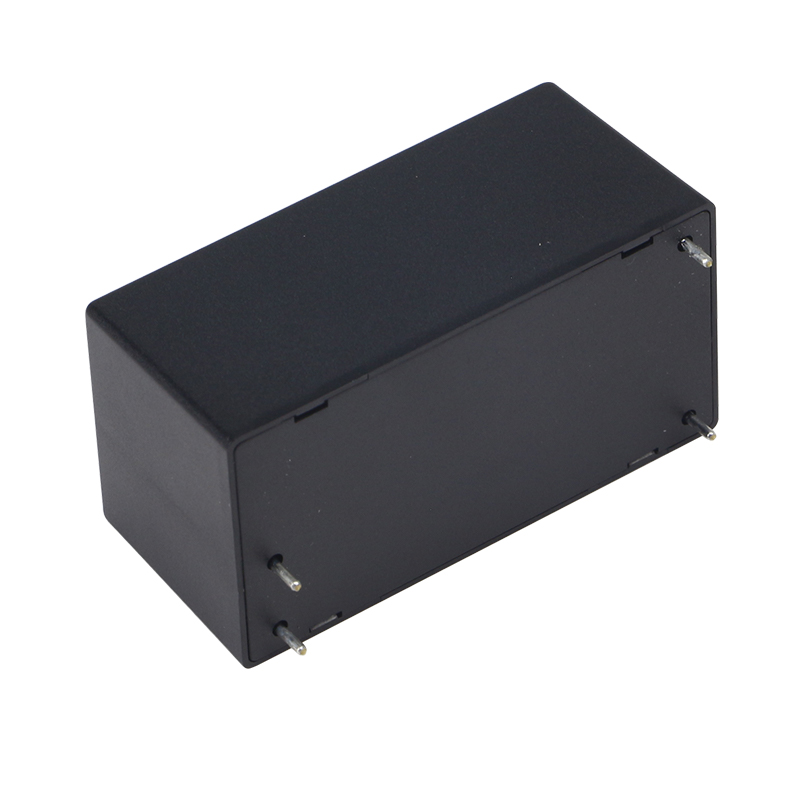

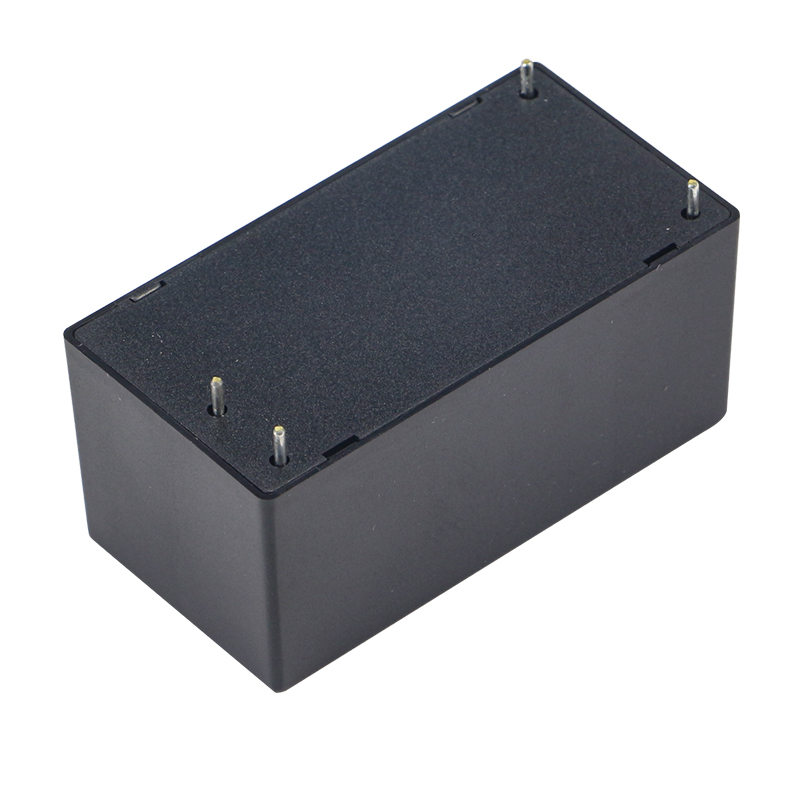

IRM series is a 5-10W miniature (45.7 * 25.4 * 21.5mm) AC-DC module-type power supply, designed to be soldered onto the PCB boards of various kinds of electronic instruments or industrial automation equipment. This product has a 94V-0 flame-retardant plastic case and is potted with silicone to enhance heat dissipation and meet anti-vibration demands up to 5G. Moreover, it provides basic resistance to dust and moisture. With high efficiency of up to 77% and extremely low no-load power consumption below 0.1W, the IRM series fulfills worldwide regulations for low power consumption requirements in electronics. The entire series is a Class II design (no FG pin), incorporating built-in EMI filtering components, enabling supreme EMC features that ensure end electronic units remain compliant with BS EN/EN55032 Class B, protecting against electromagnetic interference.
