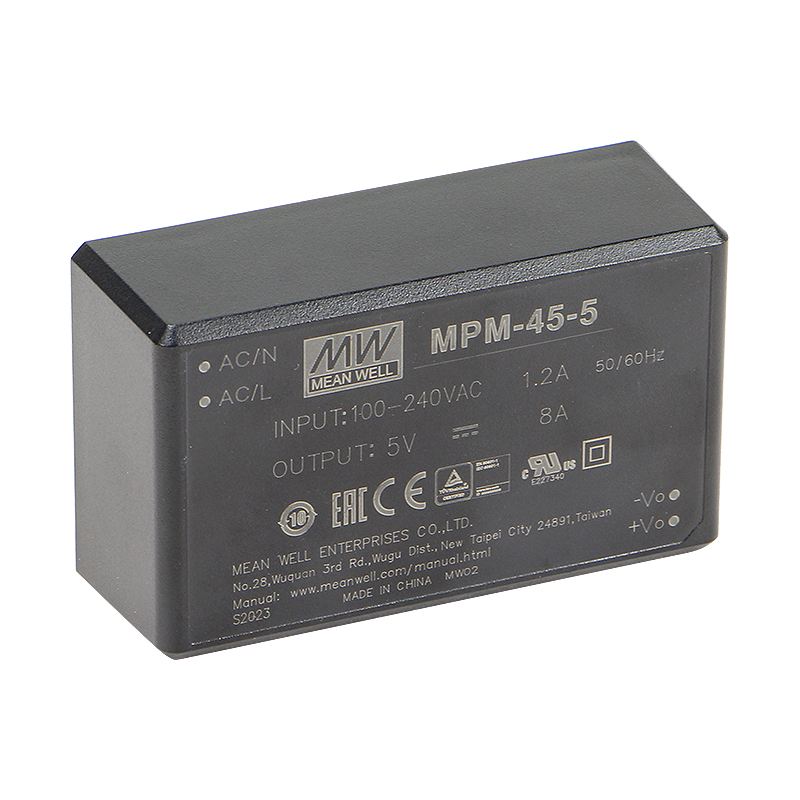

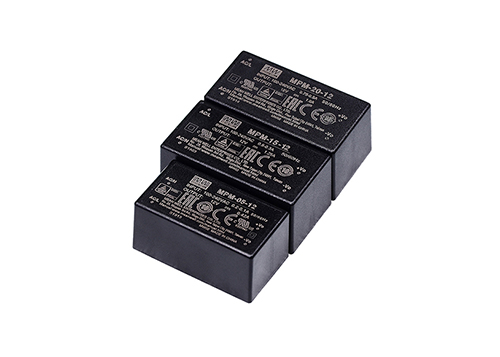

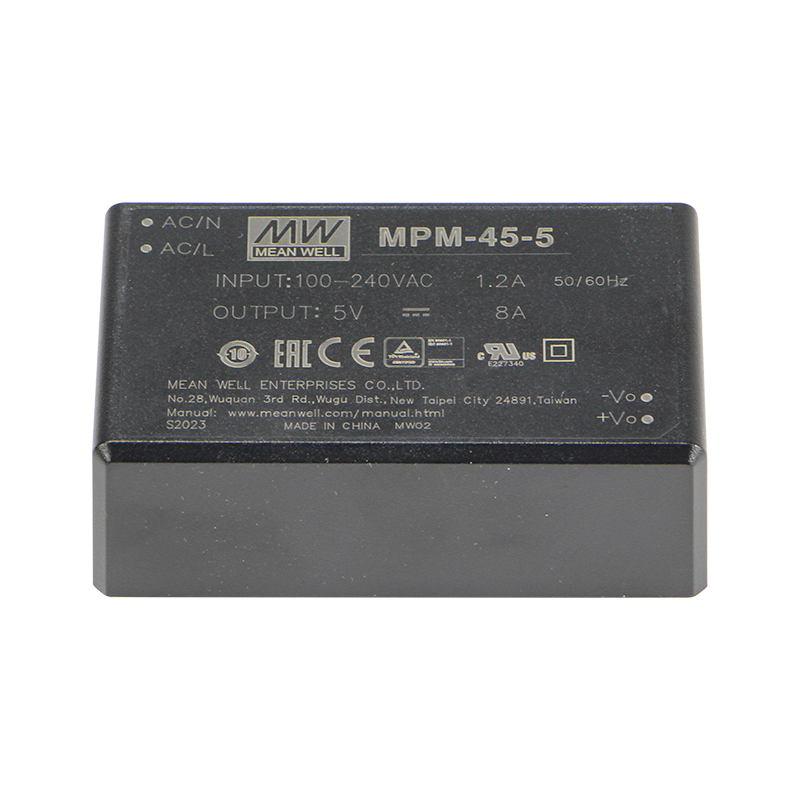

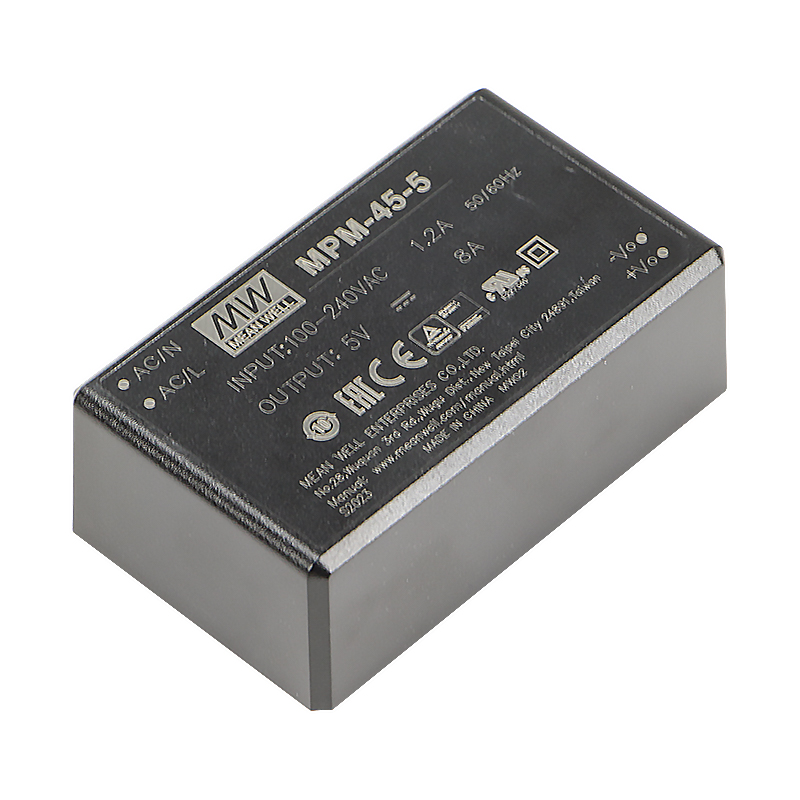

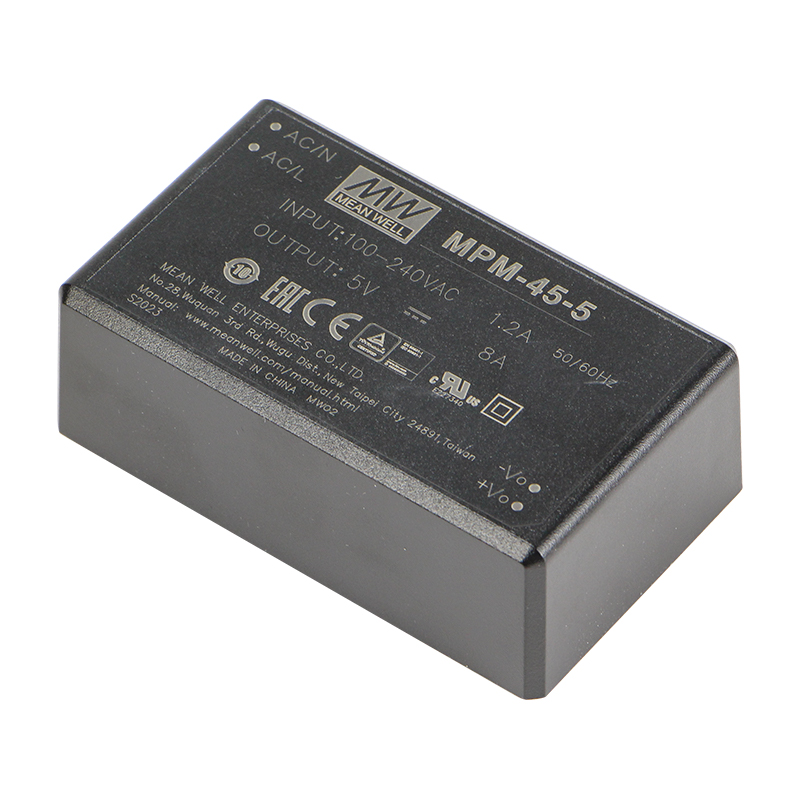

MPM Series     5~90W High Reliable Green Medical Encapsulated Type              WWW.CYNOPOWER.COM

■ Features                                                                                        ■ Applications

‧ 2.06"x1.07"compact size                                                                                                                  ‧ Portable medical device

‧ Suitable for BF application with appropriate system consideration                                          ‧ Mobile clinical workstation

‧ No load power consumption<0.1W                                                                                                 ‧ Medical computer monitor

‧ Extremely low leakage current                                                                                                          ‧ Medical examination instrument

‧ Wide operating temp.range -40~+85℃

· EMl class B for class II configuration

‧ No minimum load required

‧ Protections:Short circuit /Overload /Over voltage /Over temperature

‧ Medical safety approved (2 x MOPP) according to ANSIAAMIES60601-1 and IEC/BS EN/EN60601-1

‧ 3 years warranty

■ Description

MFM series is a 5-90W high-density and small-size AC/DC onboard-type medical power supply series. It features operation for 80~264V AC, low no-load power consumption of less than 0.1W, high efficiency up to 87%, Class II (no FG) double insulation, outstanding dissipation, 5G anti-vibration, high EMC performance, 4kVAC isolation, etc. The design observes IEC/BS EN/EN60601-1 and ANSI/AAMI ES60601-1 version three with 2xMOPP level and ultra-low leakage current (<80μA). It is very suitable for BF (patient contact) type medical devices or relevant equipment.
