NPB Series     Compact Size and Wide Output Range Battery Charger               WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ 90~264Vac universal AC input, built-in PFC                                                              ‧ Radio system backup solution

‧ Charger for compatible with lead-acid and li-ion batteries                                     ‧ Electric scooter charger

‧ 2 or 3 stage selectable by DlP S.W                                                                                ‧ Camping car / Buses / Heavy duty truck / Specialty vehicles

‧ Wide adjustable output range by VR                                                                            ‧ Surveillance system

‧ Miniature size and 1U low profile                                                                                 ‧ Portable power tools

‧ No load power consumption<0.15W(AC S.W off)

‧ Fan ON-OFF control (Depends on internal temperature)

‧ -30℃~+70℃ wide operating temperature

‧ Comply with UL/EN62368-1 and EN60335-1/2-29 dual certification

‧ Protections:Short circuit/Over voltage /Over temperature /Battery reverse polarity protection

‧ 100% full load burn-in test

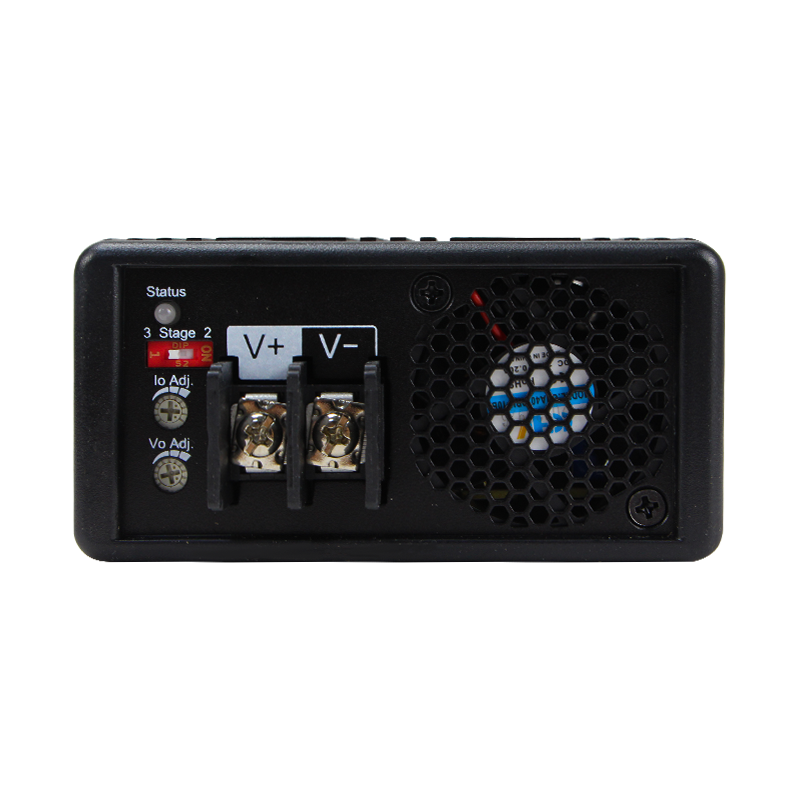

‧ Front panel LED indicator for charging status

‧ 3 years warranty

■ Description

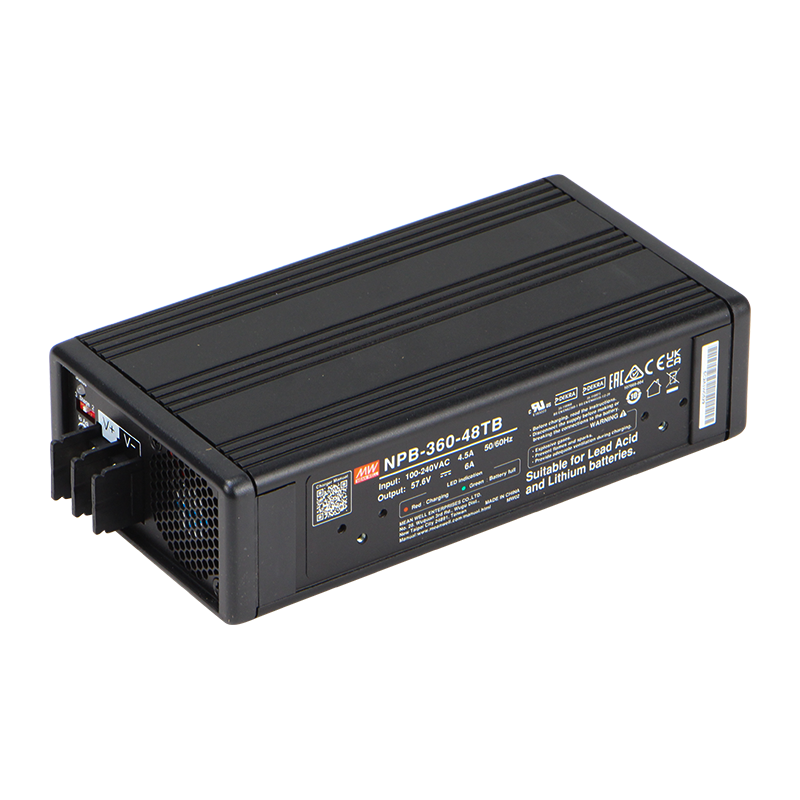

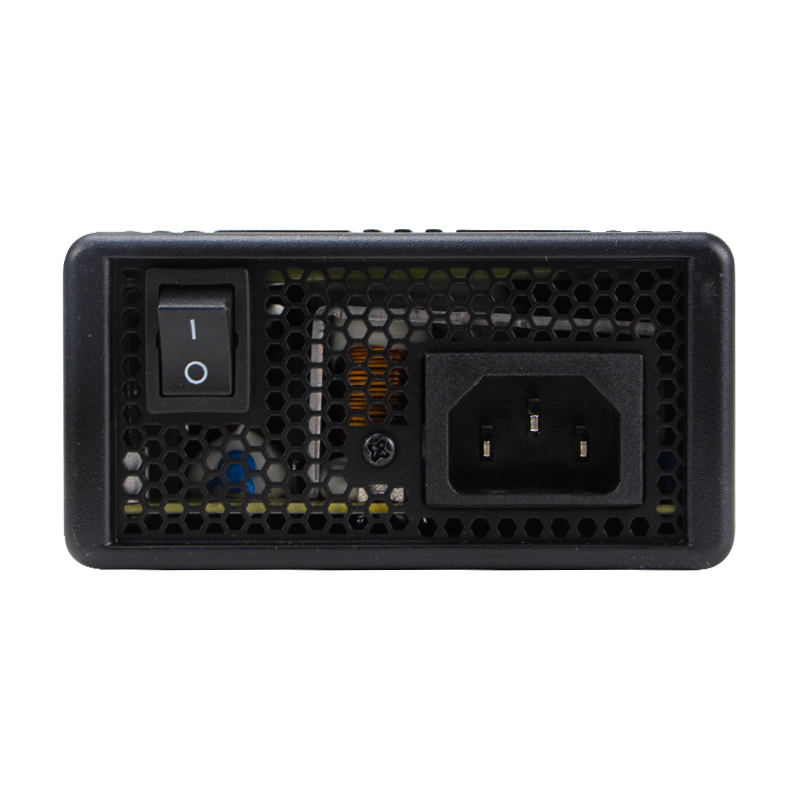

NPB-360 series is a 360W charger compatible with lead-acid (Flooded, Gel, AGM) and Li-ion (Lithium Iron, Lithium Manganese) batteries. This product is a Class I power unit (with FG), equipped with a standard IEC 320-C14 AC inlet and two or three-stage charging control. The entire series offers different models with output voltages ranging between 10.5VDC and 60.8VDC, which can satisfy the demands of various types of battery devices.
