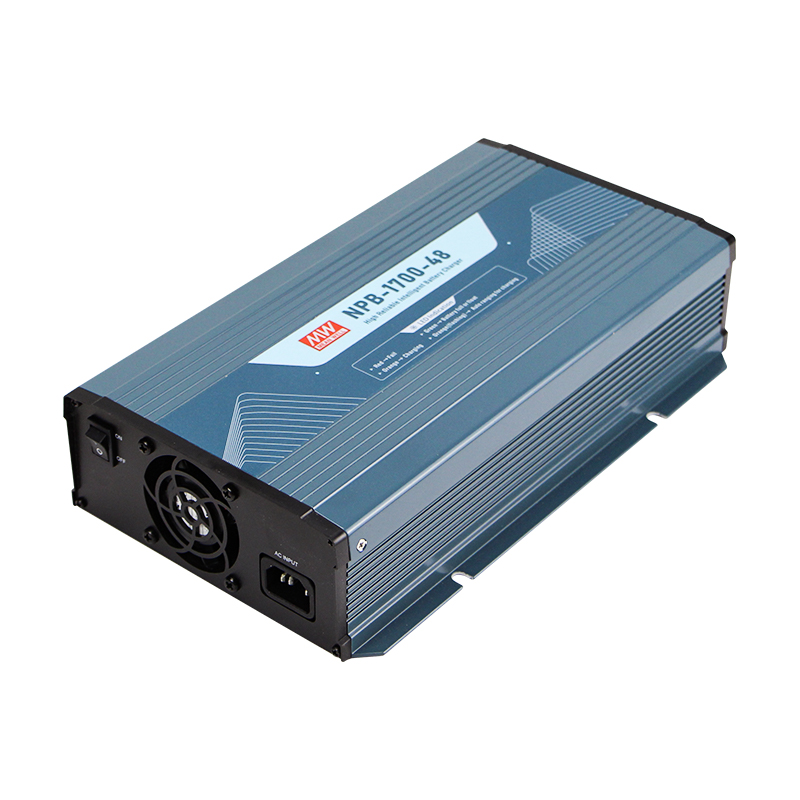

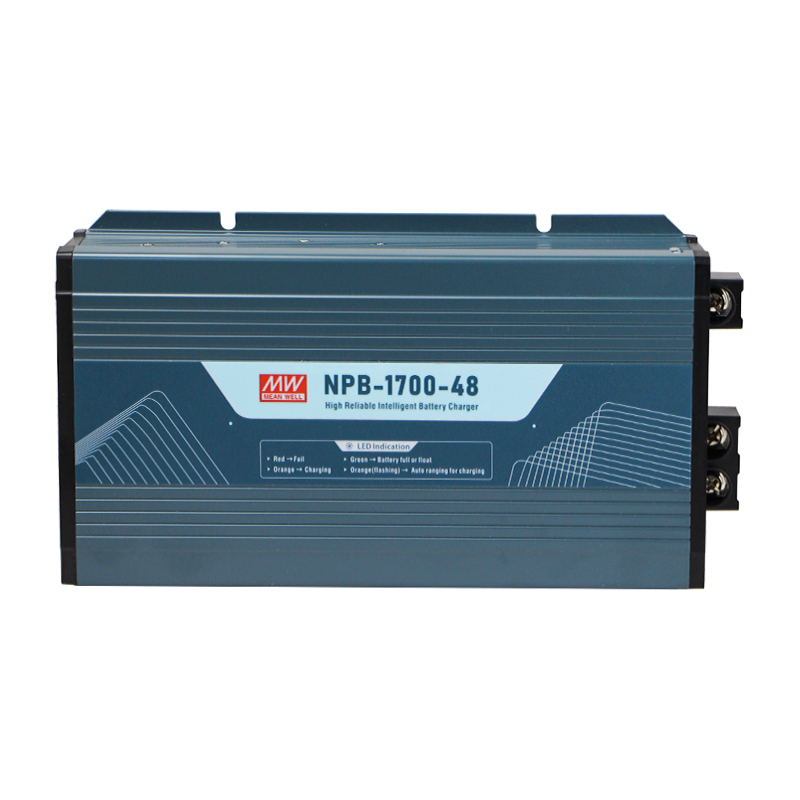

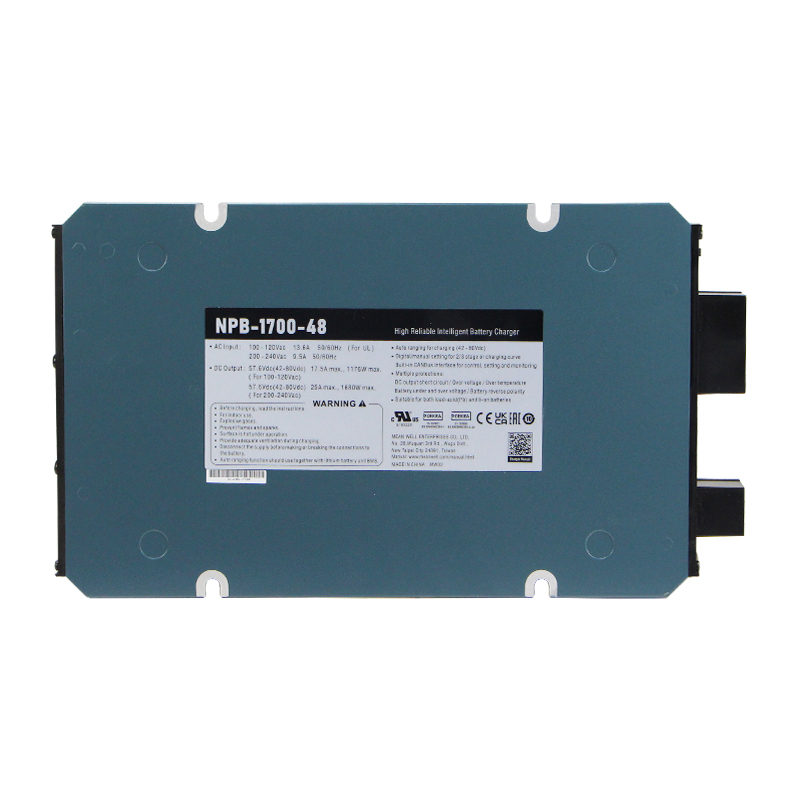

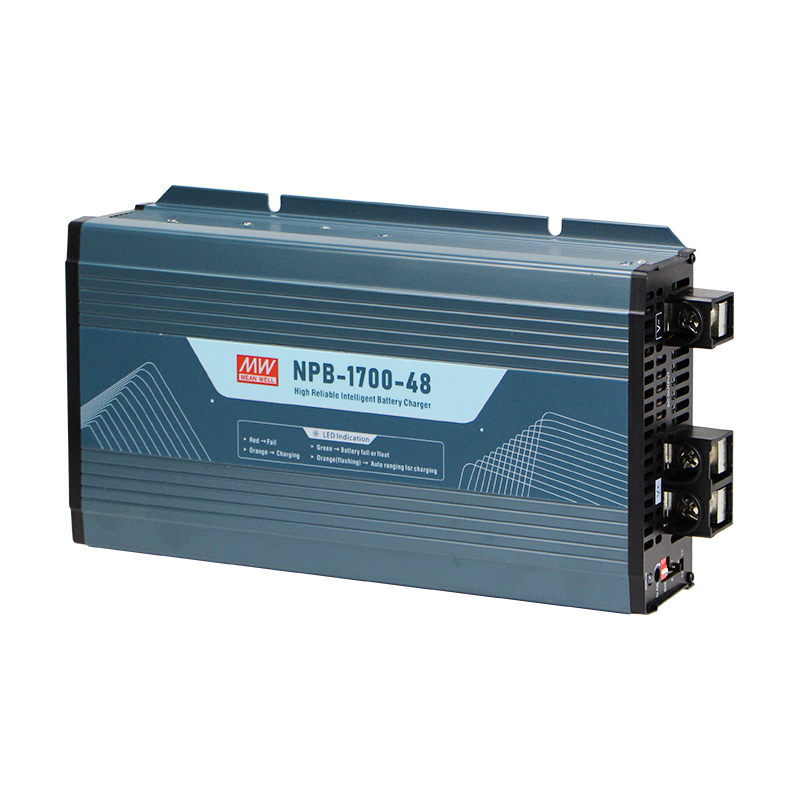

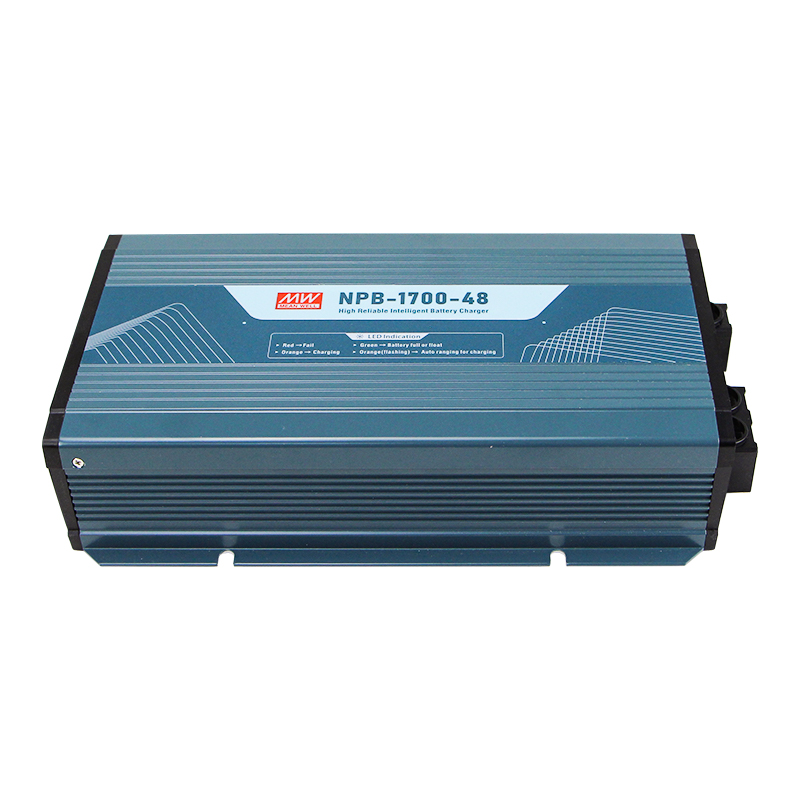

NPB Series     450~1700W Wide Output Range Intelligent Battery Charger      WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Auto ranging with ultra-wide charging voltage                                                        ‧ AGV

‧ Built-in CANBus protocol for control, setting and monitoring                                ‧ E-Bike / E-Scooter / Camping car / Bus / Specialty vehicles

‧ Programmable charging curve via SBP-001                                                                ‧ Robotic lawn mower

‧ Manual setting for 2/3 stage and 4 built-in charging curves via DlP S.W               ‧ Washing robot

‧ Charger OK and Battery Full signal                                                                               ‧ Recreation craft, Personal yacht or workboat

‧ Temperature compensation function to prolong battery life                                  ‧ Surveillance system

‧ -30℃~+70℃ wide operating temperature                                                                ‧ Telecommunication base station

‧ Thermal controlled DC fan for noise reduction                                                         ‧ Radio system backup solution

‧ Remote ON/OFF control ‧ Washing robot                                                                  ‧ Equipments orinstruments with back-up battery

‧ Smart programmer available

‧ Carry handle accessory available

‧ Comply with 62368-1+ 60335-1/-2-29 dual certification

‧ Carry handle accessory available

‧ Suitable for lead-acid (Pb) and li-ion batteries

‧ Multiple protections:Short circuit /Over voltage/Over temperature/ Battery under voltage/Battery reverse polarity (No damage)

‧ 3 years warranty

■ Description

NPB-1200 is a miniaturized, versatile, and ultra-wide voltage intelligent charger. It utilizes a fully digital control design with automatic battery voltage detection technology, featuring five key characteristics: intelligent, versatile, user-friendly, safe, and compact. The series includes four models with output voltage ranges of 10.5~21V, 21~42V, and 42~80V respectively. The charging voltage range of each model is wide enough to cover a variety of different battery voltages and chemistries. Additionally, it has a built-in intelligent voltage detection charging mode (note: this mode is set to OFF by factory default and is suitable only for lithium batteries with BMS).

The NPB-1200 can pair with MEAN WELL's SBP-001 programmer for digital configuration, such as adjusting charging voltage/current and setting charging cycle time to protect battery lifetime. Through the user-friendly DIP S.W. on the front panel, users may also directly adjust the 2/3 stage charging, current (50~100%), and select between the 4 types of preset charging curves. In addition, a CANBus communication protocol is built-in to meet professional applications, allowing remote controlling and monitoring of the charger's status.

In terms of safety, it features intelligent detection for proper battery voltage and connection, as well as protection from reverse polarity. It complies with IEC/EN 62368-1 and household appliances EN 60335-1-2-29 dual safety standards, and comes with a 3-year warranty to guarantee reliable operation. The NPB-1200 is truly an intelligent, safe, and reliable universal charger with outstanding cost performance.
