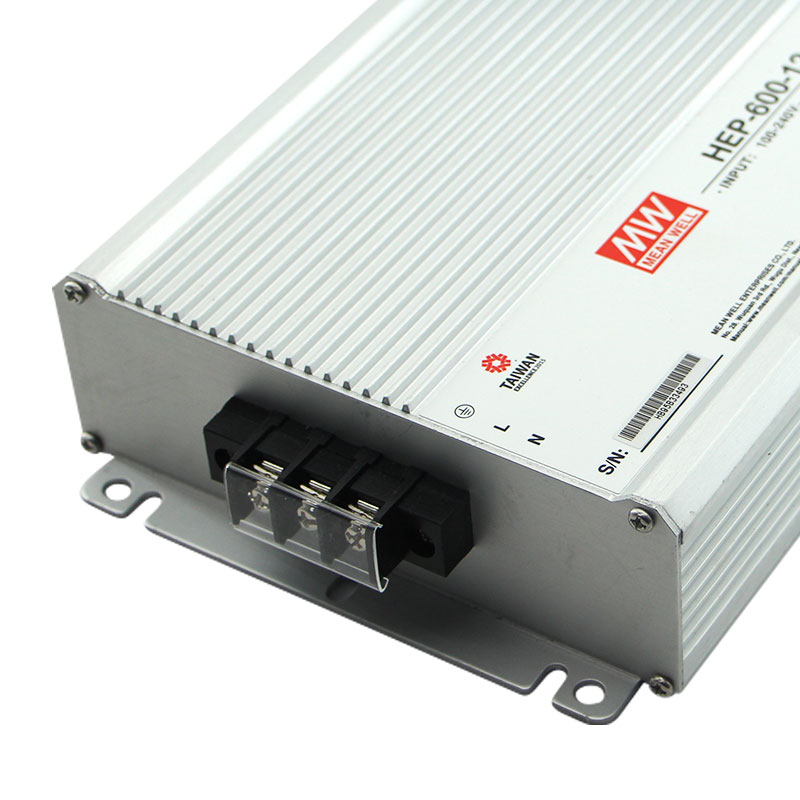

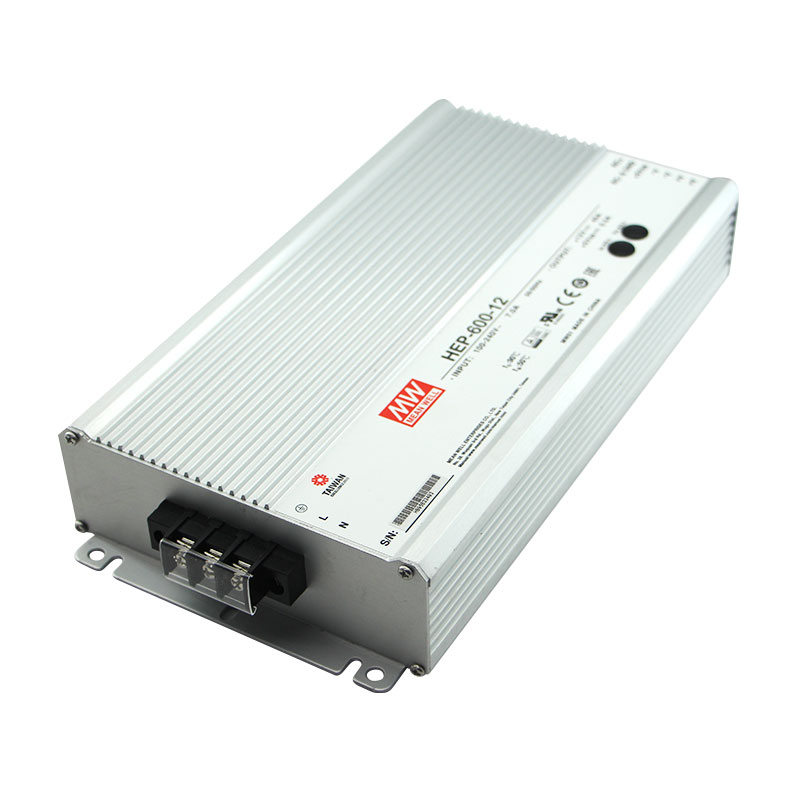

HEP Series     600W Battery Charger for Harsh Environment                                WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ 3 stage charging                                                                                                             ‧ Suitable for battery charger at harshenvironment

‧ Universal AC input/Full range (up to 305VAC)                                                           ‧ Robotic lawn mower

‧ Built-in active PFC function                                                                                           ‧ Electronic transportation vehicle

‧ No load power consumption <0.5W at remote OFF                                                 ‧ Recreational craft, personal yacht orworkboat

‧ High efficiency up to 95.5%                                                                                          ‧ Security network and system

‧ Fanless design, cooling by free air convection                                                          ‧ Telecommunication base station

‧ Aluminum case and filling with heat-conducted glue                                              ‧ Equipments or instruments withback-up battery

‧ Charger for lead-acid batteries (flooded, Gel and AGM) andLi-ion batteries (lithium iron and lithium manganese)

‧ Withstand 10G vibration test

‧ -40~+70℃ wide operating range

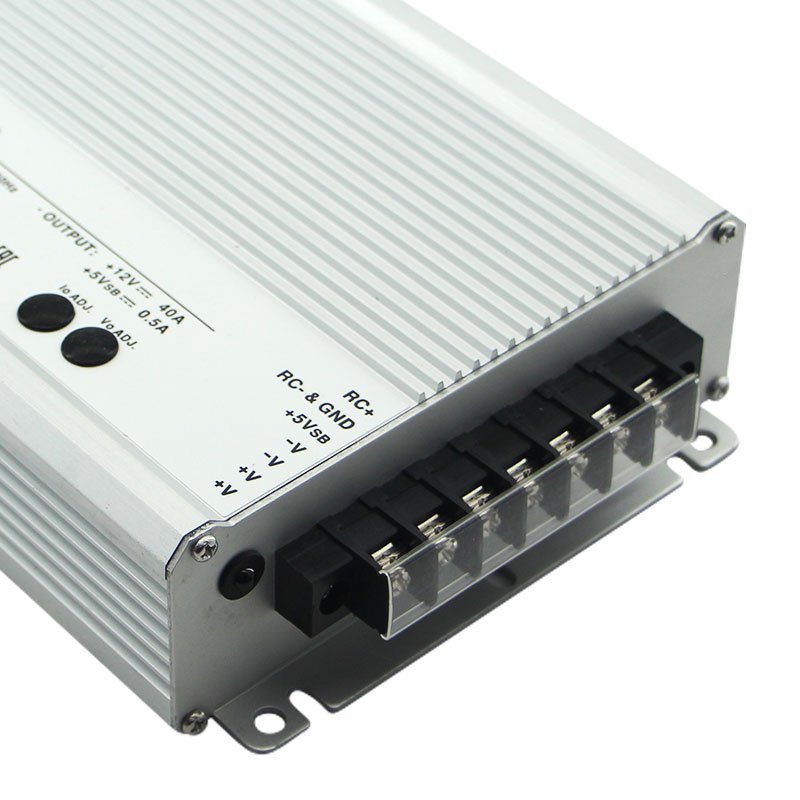

‧ Output voltage and output current can be adjusted throughinternal potentiometer

‧ Protection:Short circuit/Over voltage/Over temperature

‧ 3 color LED loading indicator

‧ Operating altitude up to 5000 meters

‧ 6 years warranty

■ Description

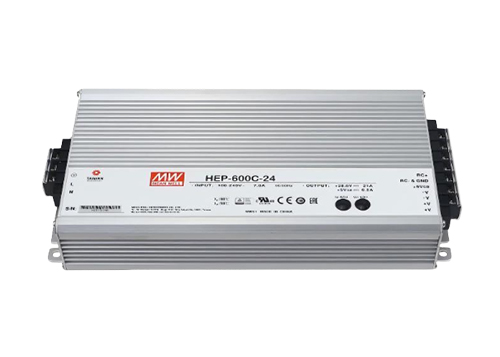

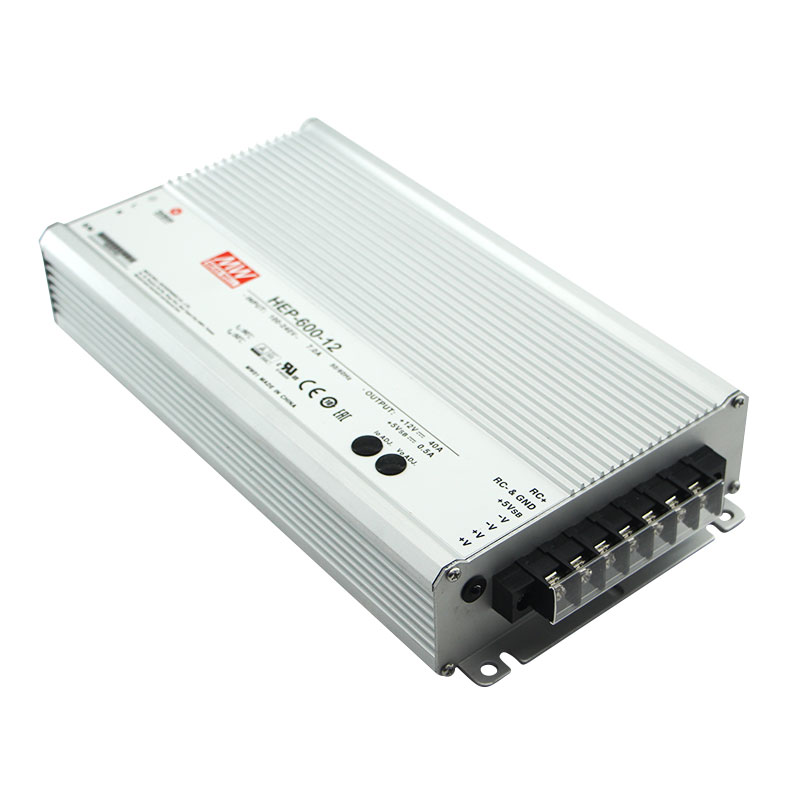

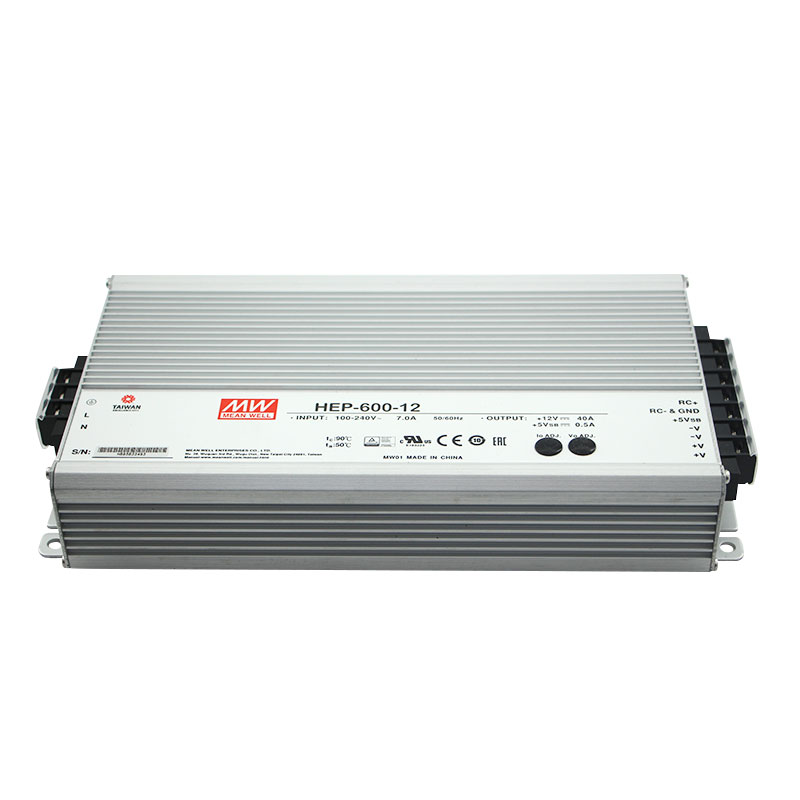

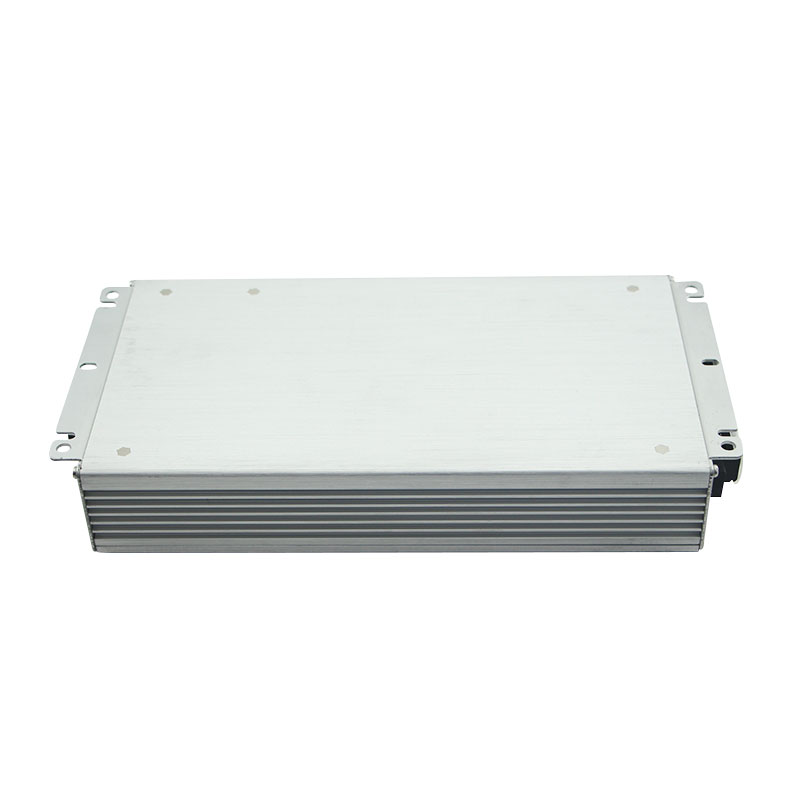

HEP-600C series is an AC-to-DC battery charger providing up to 600W, designed with an aluminum case and fully potted with silicone. It features high efficiency (up to 95.5%), waterproofing, and low no-load power consumption (<0.5W) at remote OFF. Incorporating state-of-the-art design, the fan-less HEP-600C is capable of working under high-vibration (10G), dusty, humid, and oily environments. Other features include adjustable voltage/current and a wide working temperature range (-40~+70°C).
