MEAN WELL ELG Series

Wattage : 75W~300W

Features:

• 100~305VAC input range

• Constant current (C.C.) output

• Constant power (C.P.) output

• Built-in active PFC function

• No load/standby power consumption <0.5W

• Metal case, IP67/IP65 design for indoor or outdoor installations

• Suitable for LED street lighting and outdoor LED lighting

• 5 years warranty

Product Description:

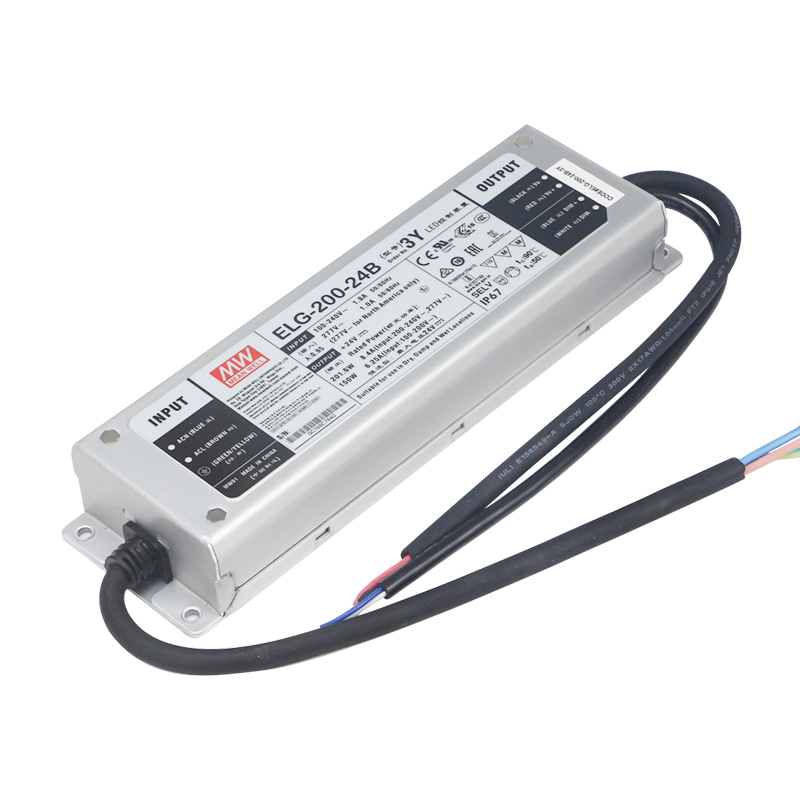

ELG Series 75~300W Constant Volttage+Constant Current Mode LED Driver WWW.CYNOPOWER.COM

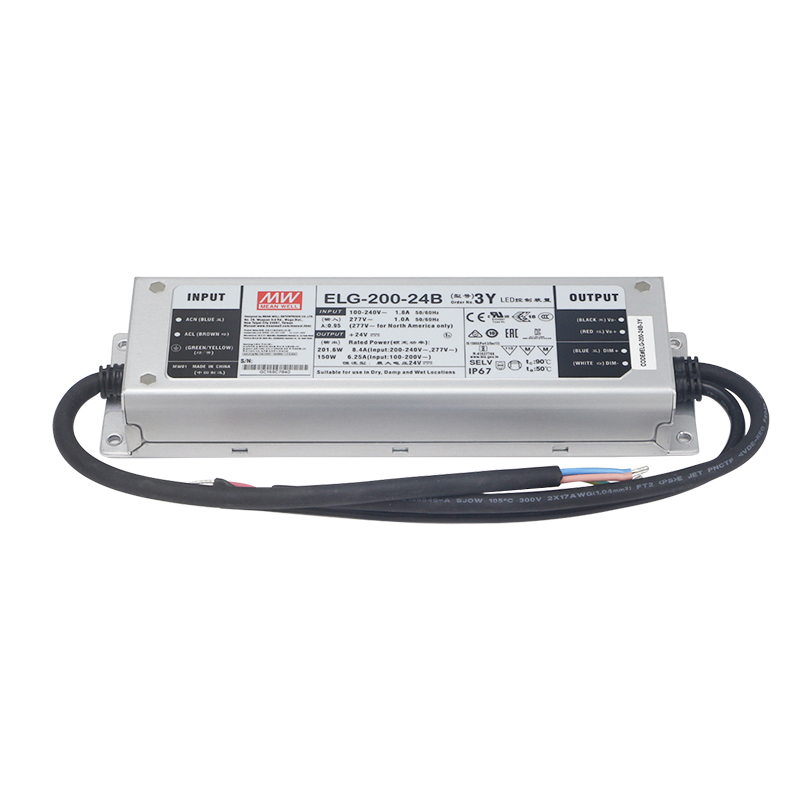

ELG-200-24B-3Y (4).jpg

■ Features ■ Applications

‧ Constant Voltage+Constant Current mode output ‧ LED street lighting

‧ Metal housing design with functional Ground ‧ LED architectural lighting

‧ Built-in active PFC function ‧ LED bay lighting

‧ No load/Standby power consumption <0.5W ‧ LED floodlighting

‧ IP67/lP65 rating forindoor or outdoorinstallations ‧ Type “HL"for use in Class l, Division 2hazardous (Classified) location.

‧ Function options:output adjustable via potentiometer

3 in 1 dimming (dim-to-off);Smart timer dimming; DALl

‧ Typicallifetime>50000 hours

‧ 5 years warranty

■ Description

The ELG-200 series is a 200W AC/DC LED driver featuring dual-mode constant voltage and constant current output. The ELG-200 operates from 100-305VAC and offers models with different rated voltages ranging between 12V and 54V. Thanks to its high efficiency of up to 93% and fanless design, the entire series can operate in a case temperature range of -40℃ to +90℃ under free air convection. The metal housing design and IP67/IP65 ingress protection level make this series suitable for both indoor and outdoor applications. The ELG-200 is equipped with various function options, such as dimming methods, to provide optimal design flexibility for LED lighting systems.
