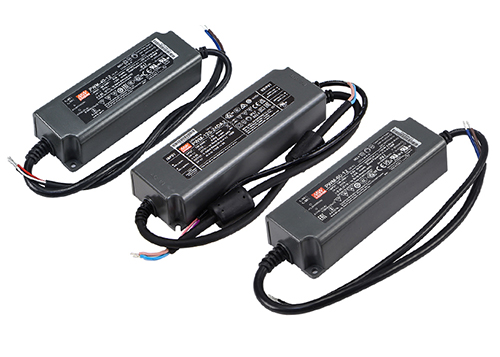

PWM Series     60~200W Wireless Lighting Constant Voltage LED Driver Solution                            WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Bluetooth Mesh Dimming Function                                                                          ‧ LED strip lighting

‧ Plastic housing with class ll design                                                                            ‧ Indoor LED lighting

‧ Built-in active PFC function                                                                                         ‧ LED decorative lighting

‧ Typical lifetime>50000 hours                                                                                     ‧ LED architecture lighting

‧ Constant voltage PWM style output                                                                         ‧  Intelligent lighting control

‧ 5 years warranty

■ Description

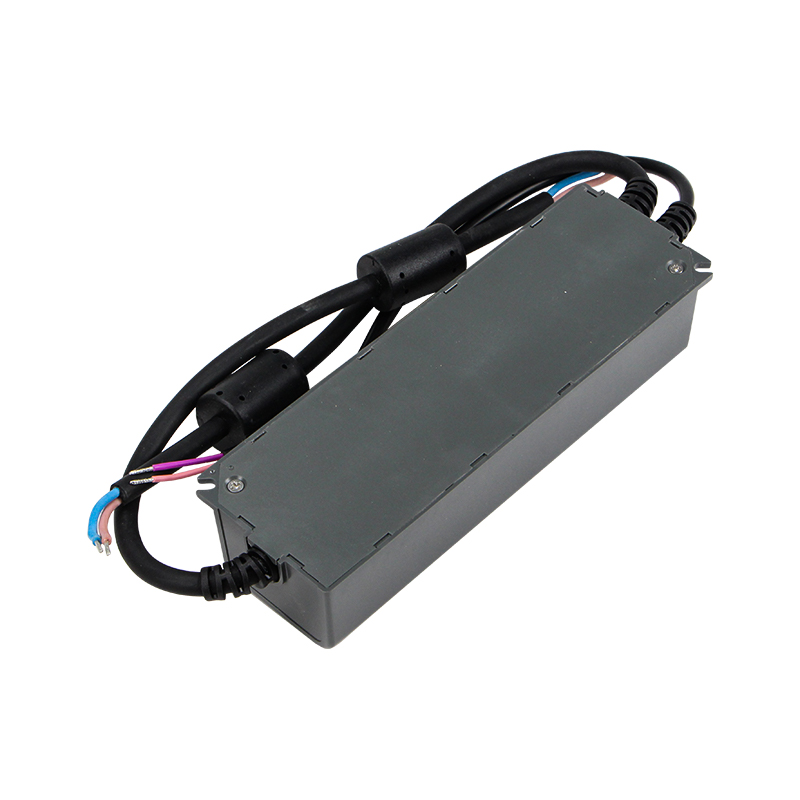

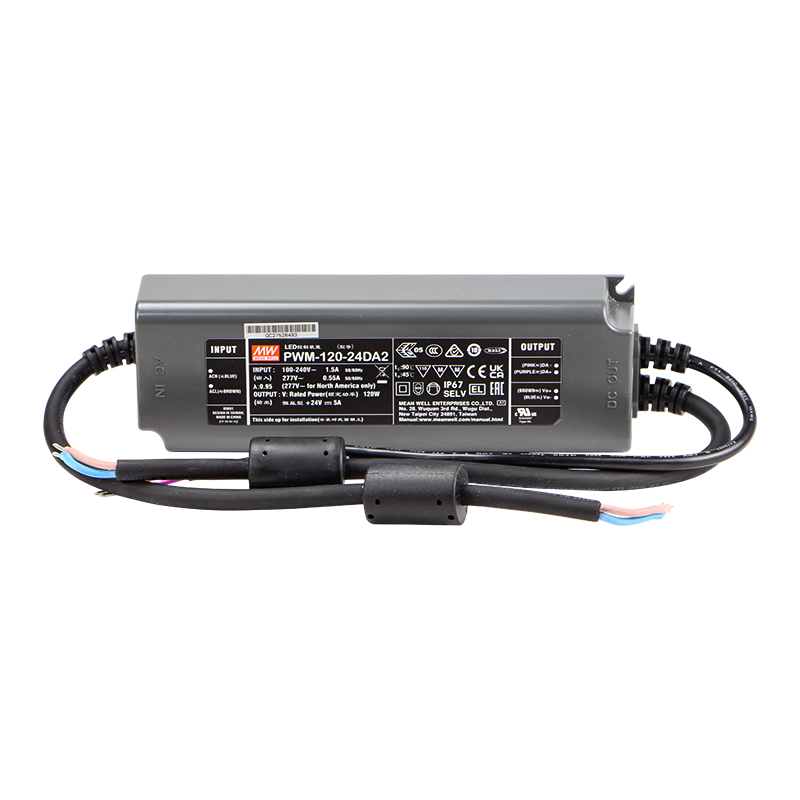

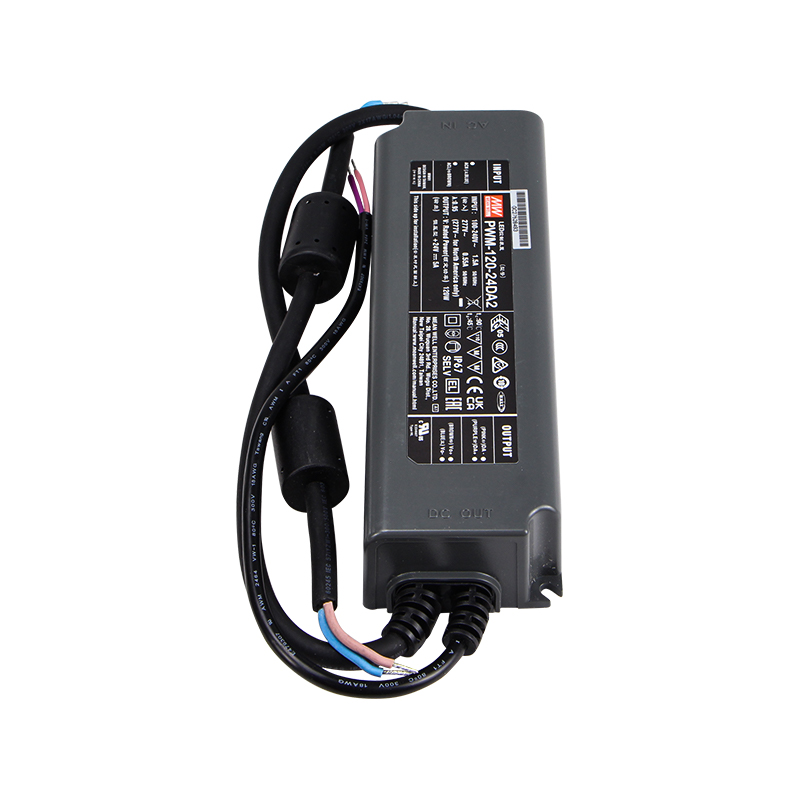

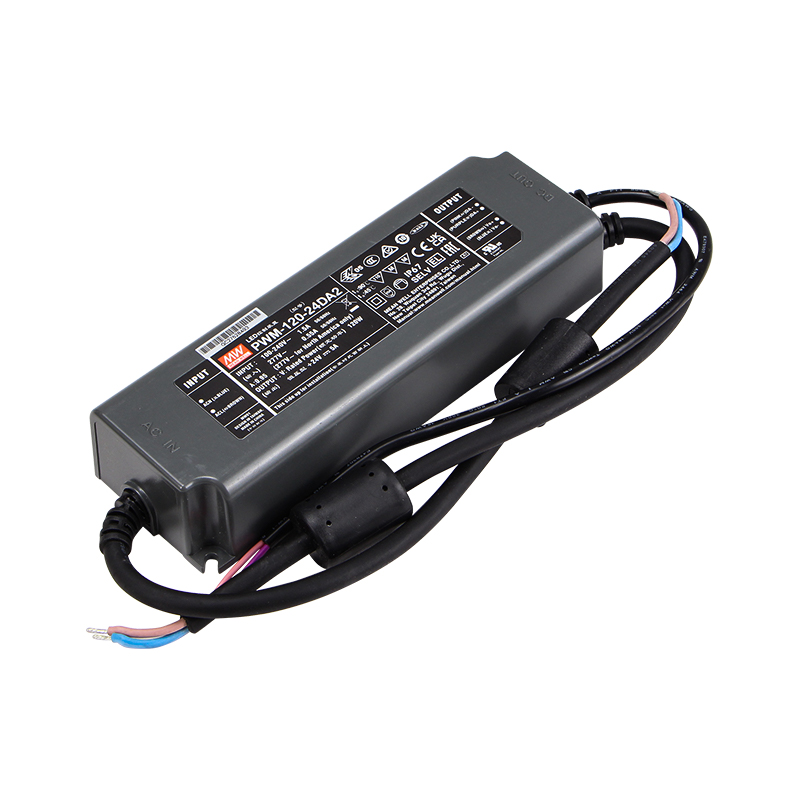

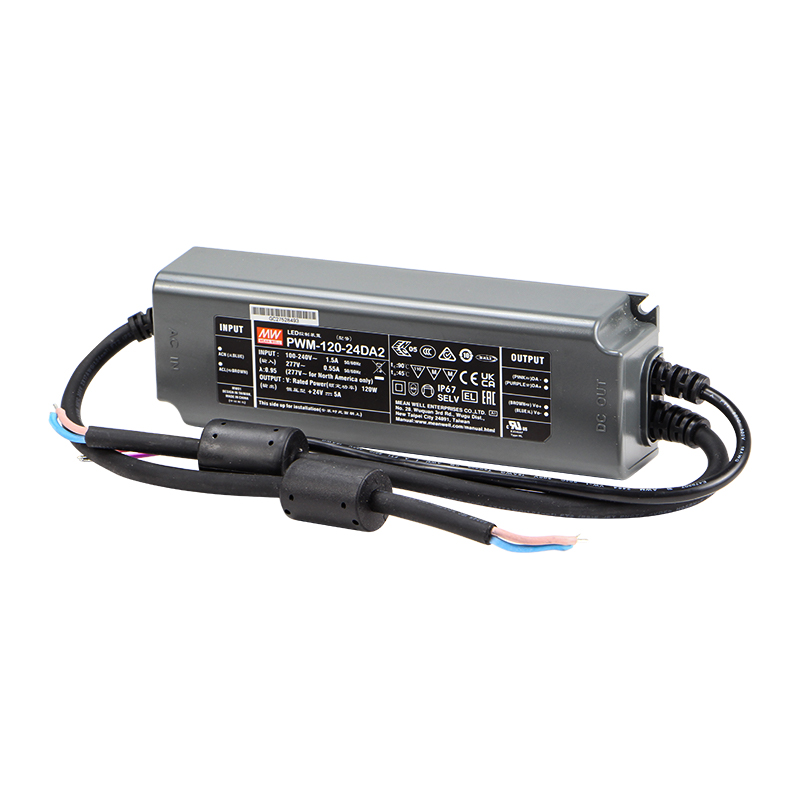

PWM-120 IoT series is a Bluetooth-ready 120W AC/DC LED driver featuring the constant voltage mode with PWM-style output, which is able to maintain brightness homogeneity when driving all kinds of LED strips and constant voltage LED bulbs. PWM-120 IoT operates from 90 to 305VAC and offers models with different rated voltages ranging between 12V and 48V. Thanks to the high efficiency of up to 90%, with the fanless design, the entire series is able to operate for -20℃ to +90℃ case temperature under free air convection. PWM-120 IoT can provide a minimal dimming level as low as 0.4%, suitable for low light level applications, e.g., cinemas. The output frequency is up to 4kHz, which complies with the IEEE 1789-2015 requirement for no risk, providing a great solution for health concerns due to light flickering.
