XLC Series   Multiple-Stage Constant Power/Constant Voltage LED Driver         WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Constant voltage mode output(12/24/48V)                                                            ‧ Recessed Light

‧ Plastic housing with class ll and PFC design                                                             ‧ Down Light

‧ MeetUL8750 Class 2/Class P power unit                                                                  ‧ Panel Light

‧ Flicker free, complying with CE ErP directive                                                            ‧ Commercial Lighting

‧ Standby power consumption <0.5W                                                                          ‧ Decorative Lighting

‧ Meet emergency lighting (EL)application                                                                  ‧ LED strip lighting

‧ Minimum dimming level 0.1% (DALI-2 DT6)                                                               ‧ DALl digital Lighting

‧ Constant power mode output with multiple stageselectable by DlP switch or NFC setting (H-type)

‧ Dimming functions: 3 in 1 dimming (Dim-to-off)DAL1-2+ Push dimming

‧ 5 years warranty

■ Description

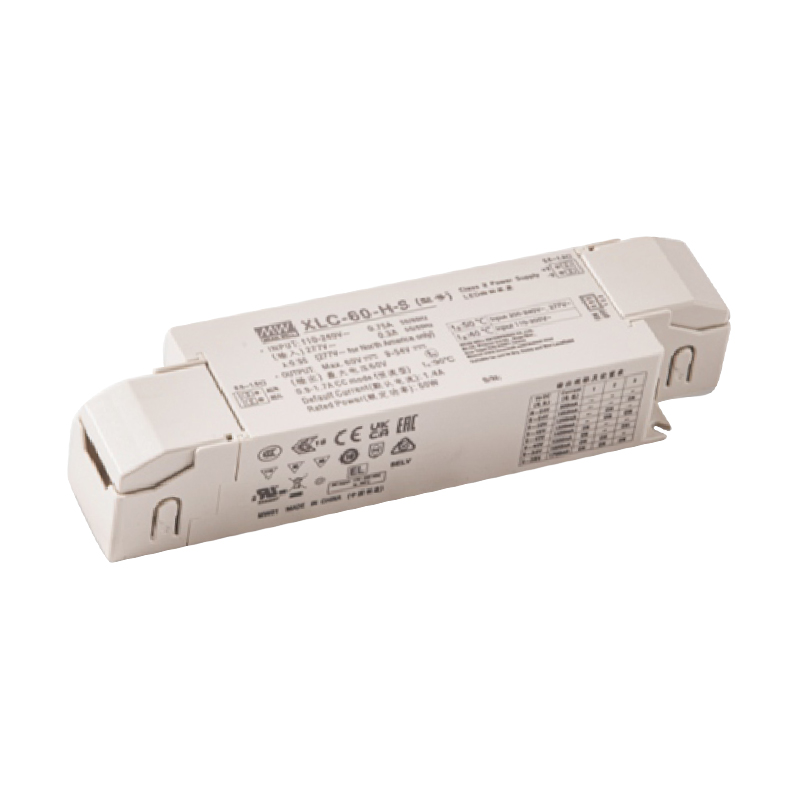

XLC-60 Series is a 60W constant power and constant voltage output LED driver. It can operate from 100 ~ 305VAC and output current ranging between 900 mA to 1700 mA, selectable by DIP switch or NFC setting. Thanks to high efficiency of up to 90%, it is able to operate at -25°C ~ 90°C case temperature under free air convection. XLC-60 is designed based on the latest safety regulations with 3-in-1 and DALI-2 dimming. XLC-60 can also be adjusted for brightness with a push button as a simple way of dimming, providing more flexibility for LED lighting applications.
