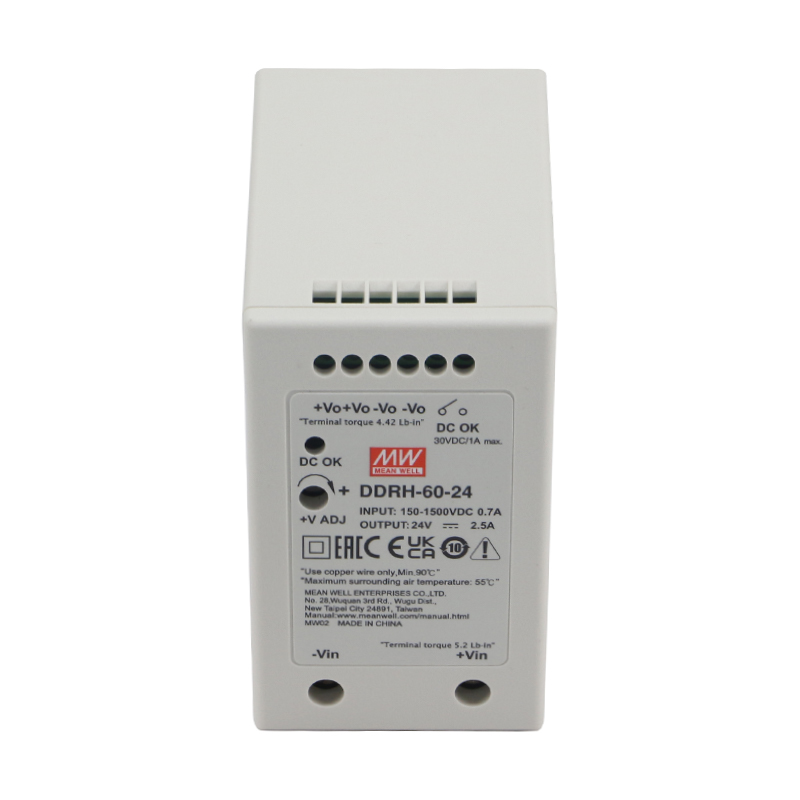

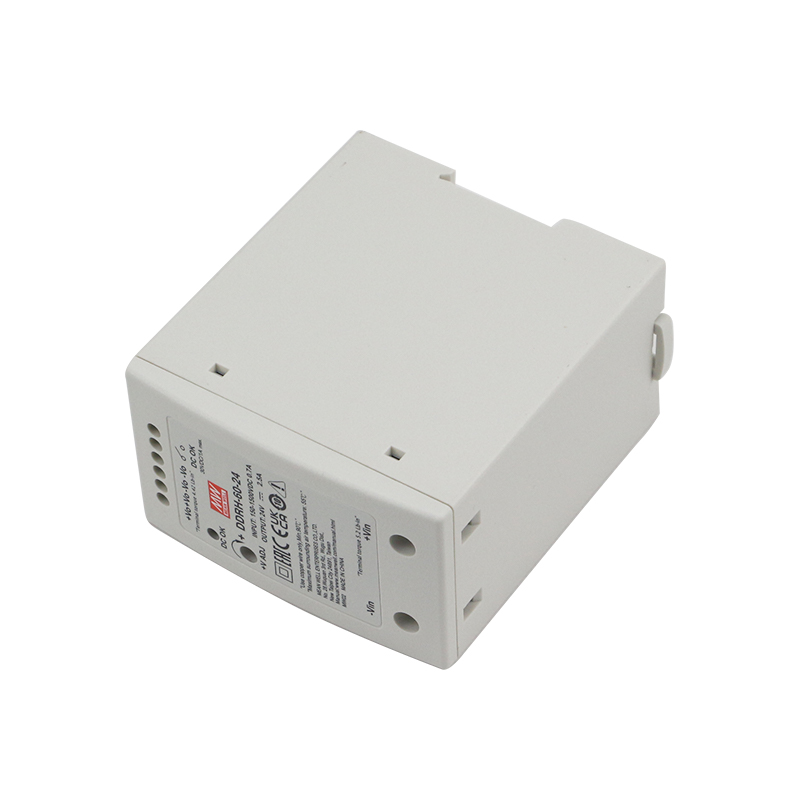

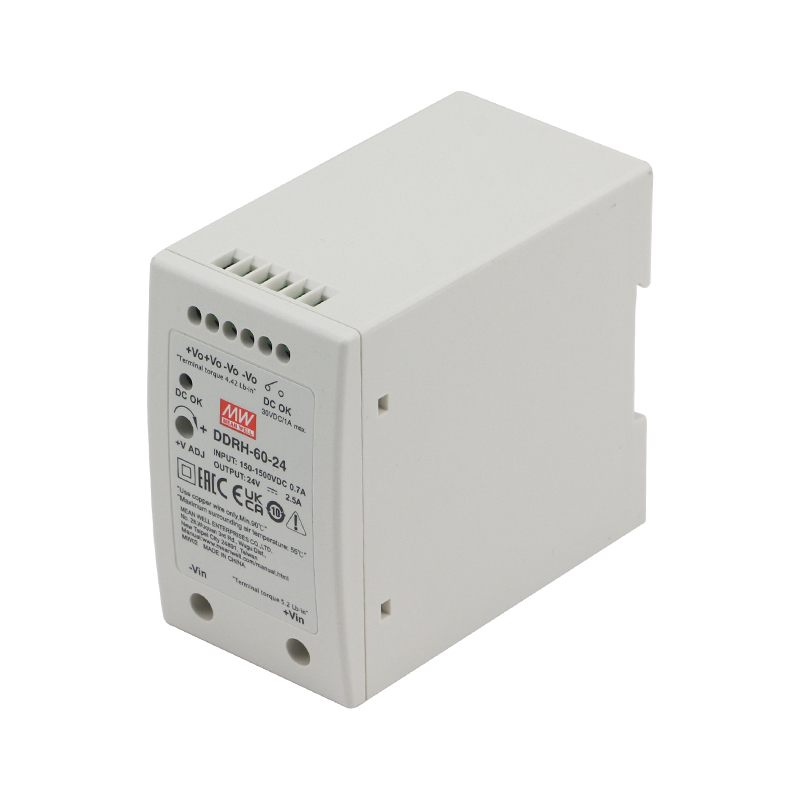

DDRH Series     15~240W 150~1500Vdc Ultra Wide Input DC-DC Converter        WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ 150~1500Vdc 10:1 ultra-wide input range                                                              ‧ Photovoltaic power  generation

‧ 4KVac l/0 high isolation(Reinforced isolation)                                                         ‧ Renewable Energy System

‧ ‧ Operating altitude up to 5000 meters                                                                    ‧ High voltage fregency conversion

‧ Fanless design, fully encapsulated, cooling by free air convection                      ‧ Industrial control system

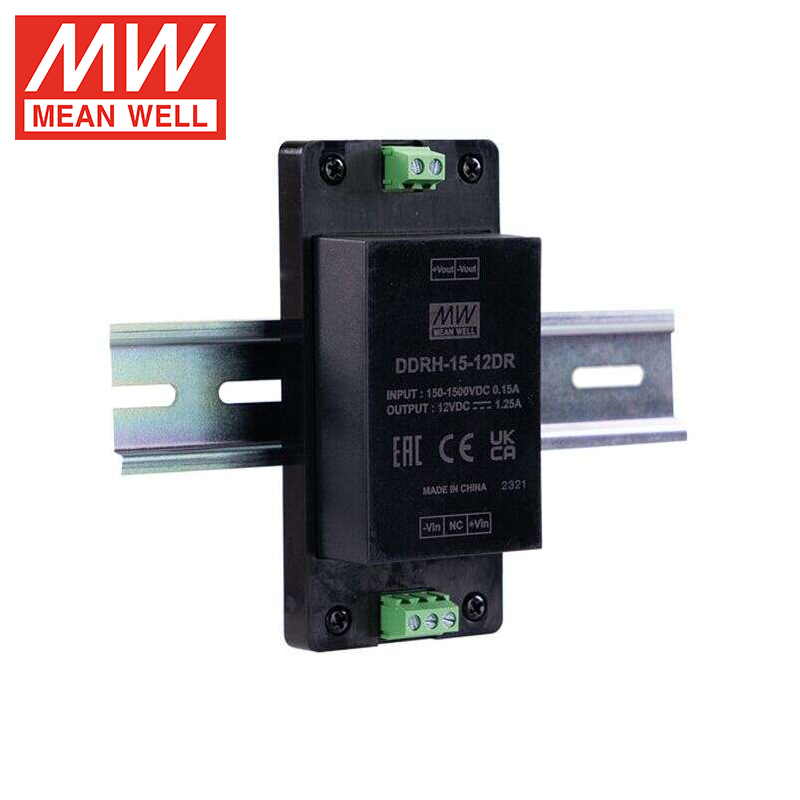

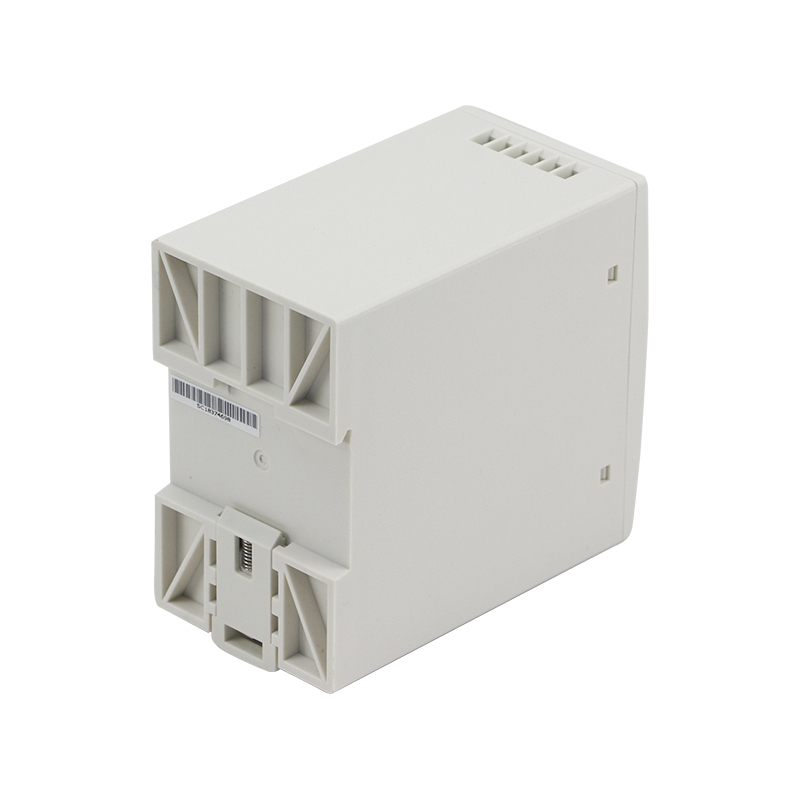

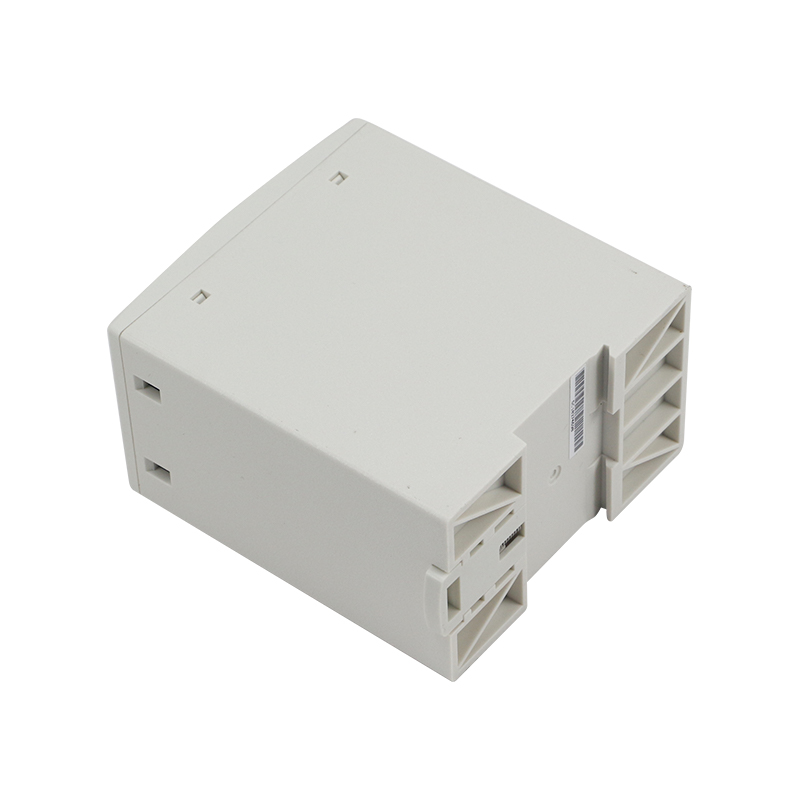

‧ Can be installed on DIN rail TS-35/7.5 or 15 (DR-Type)                                          ‧ Semiconductor fabrication equipment

‧ -40~+80℃ ultra-wide operating temperature (> +50'℃ derating)                      ‧ Electro-mechanical apparatus

‧ Protections: Short circuit /Overload /Over voltage /                                              ‧ DC bus centralized application

  DC input under voltage/DC input reverse Polarity                                                  ‧ Energy storage system(ESS)

‧ 3 years warranty                                                                                                           ‧ Charging pile

                                                                                                                                           ‧ Third rail

■ Description

The DDRH-45 series is a 150~1500Vdc high-reliability ultra-high input DC-DC converter which offers the following features: compact size, -40~+80℃ wide-range stable working voltage for the load. Main features include a wide operating temperature range, 4KVac high isolation voltage, operation at 5000m altitude, and low ripple & noise. The series also has a DIN Rail type, making it suitable to be mounted on TS-35/7.5 or TS-35/15 rails. The DDRH-45 is designed to meet UL1741 and IEC62109-1 standards. It is suitable for industrial automation, surveillance, telecommunications, and can be widely deployed in applications of new energy generation such as solar power and windmill power generation. For instance, it can be used in DC bus centralized applications, ESS (Energy Storage Systems), charging piles, photovoltaic power systems, high-voltage inverters, railway systems, and so forth.
