DDR Series     15~480W  DIN RailType DC-DC Converter                                           WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Compliance to BS EN/EN50155 and BS EN/EN45545-2railway standard          ‧ Bus,tram,metro or railway system

‧ Width only 40mm                                                                                                        ‧ Industrial control system

‧ 2:1 wide input range                                                                                                    ‧ Semi-conductor fabrication equipment

‧ -40~+70℃ wide working temperature                                                                      ‧ Factory automation

‧ 150% peak load capability                                                                                           ‧ Electro-mechanical

‧ Current sharing up to 960W(3+1)                                                                              ‧ Wireless network

‧ DC output adjustable                                                                                                    ‧ Telecom or datacom system

‧ Cooling by free air convection

‧ Can be installed on DlN rail TS-35/7.5 or 15

‧ Protections:Short circuit/Overload /Over voltage /Over temperature /Input reverse polarity/Input under voltage protection

‧ 4KVdc l/0 isolation(Reinforced isolation)

‧ 100% full load burn-in test

‧ DC OK relay contact

‧ Remote ON-OFF control

‧ 3 years warranty

■ Description

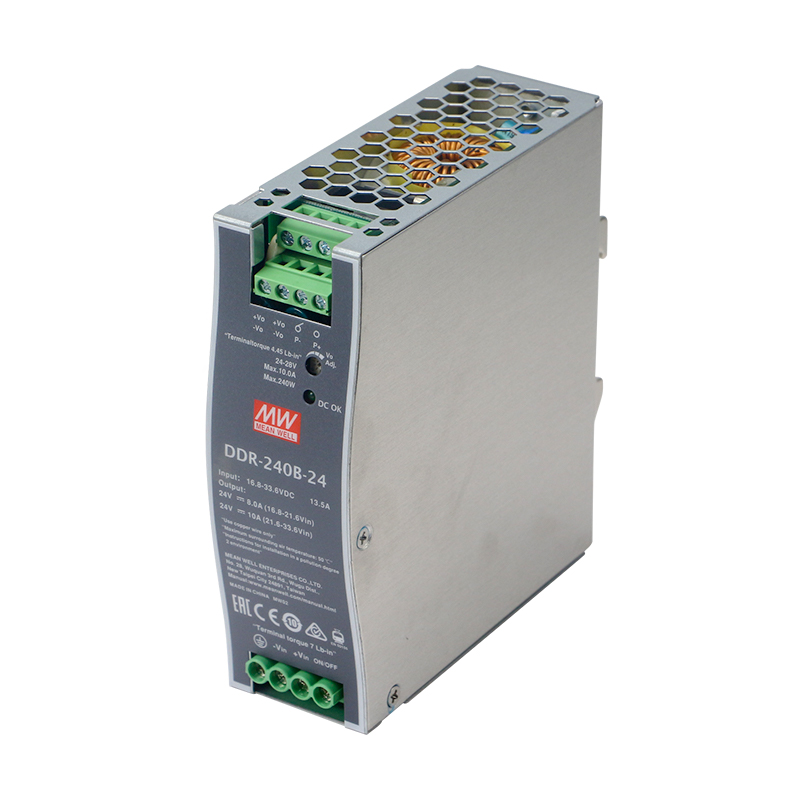

DDR-240 series is a 240W DIN Rail type DC-DC converter with main features including DIN rail-type easy installationultra slim width (40mm), 2:1 wide input voltage, fanless design,-40~+70℃ wide operating temperature, 4KVdc1/0 isolation, 150% peak load, current sharing,DC OK, adjustable output voltage and full protective functions. This series of models has various input options: 16.8~33.6V/33.6~67.2V/67.2~154V and two output options.24V / 48V and can be used for industrial & railway control, security control, communication system and other fieldsSuitable applications include to DC buck/boost regulator, increasing system insulation level and voltage dropcompensation along cable...etc.
