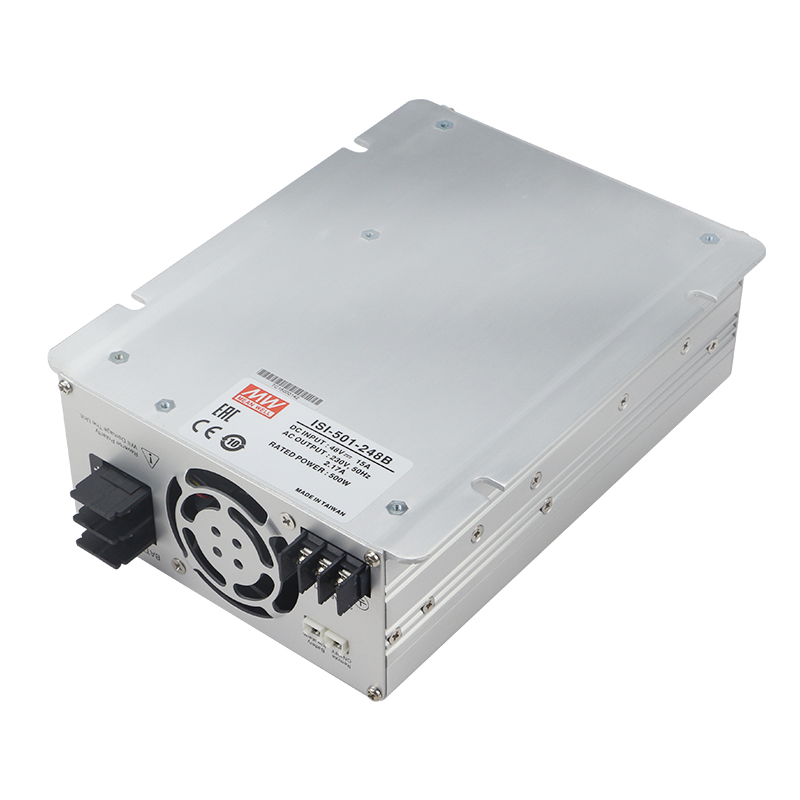

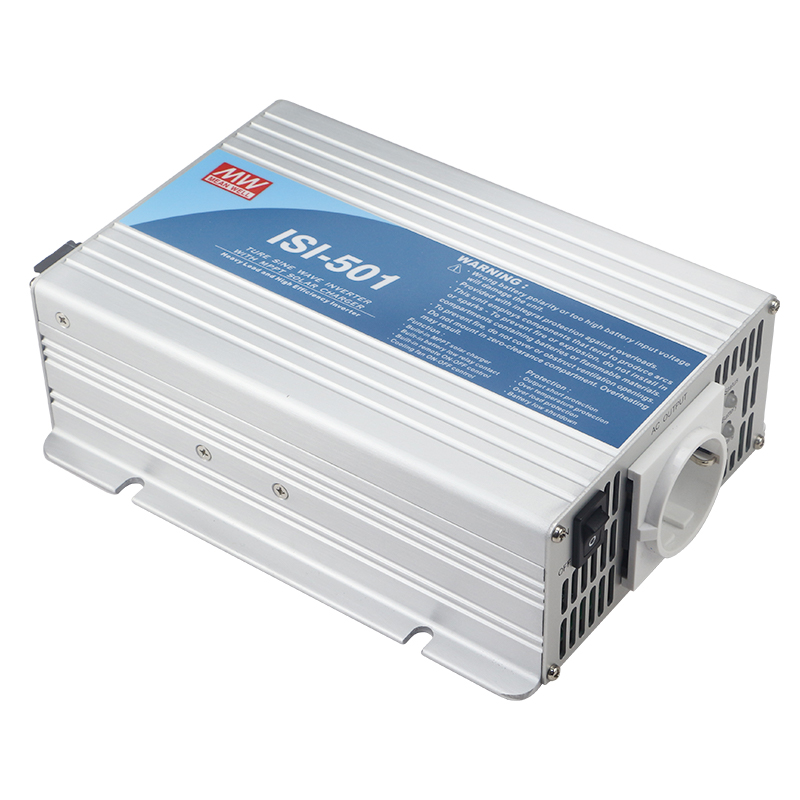

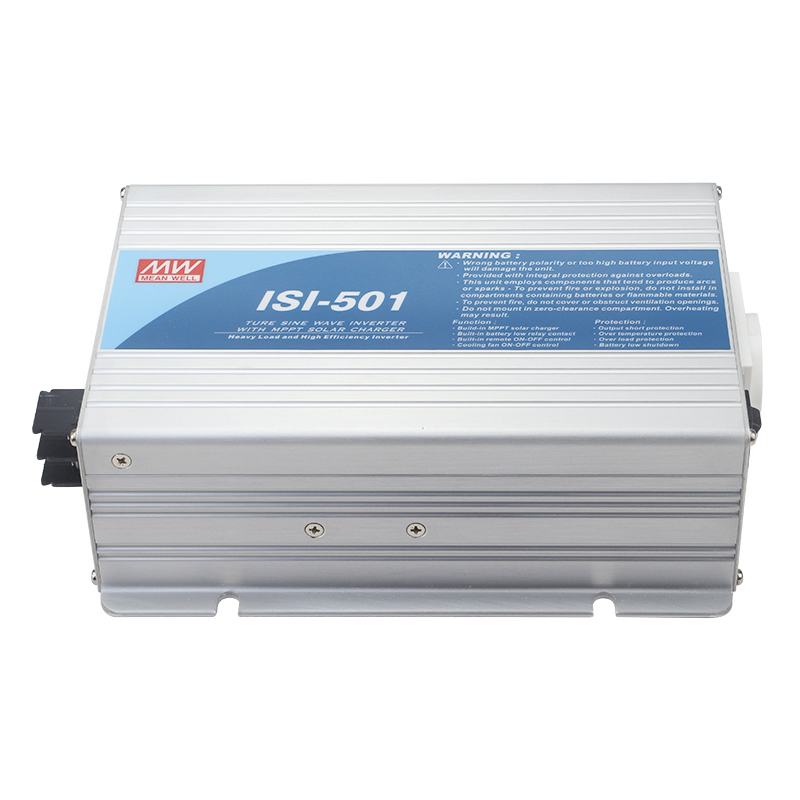

ISI Series     500WTrue Sine Wave DC-AC Inverter with MPPT Solar Charger         WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ True sine wave output(THD<3%)                                                                               ‧ Home appliance

‧ High surge power up to 1000w                                                                                  ‧ Power tools

‧ High efficiency up to 88%                                                                                           ‧ Portable equipment

‧ High frequency design                                                                                                 ‧ Yacht

‧ Thermostatically controlled cooling fan                                                                    ‧ Vehicle

‧ Protections:Bat.low alarm/Bat. low shutdown/Over voltage/Over temp./Output short/Input polarity reverse/Overload

‧ Built-in 500W MPPT solar charger, MPPT efficiency:98%

‧ Built-in remote ON-OFF control

‧ ·Built-in battery low relay contact

‧ LED indicator for operation status and battery capacity

‧ 3 years warranty

■ Description

IS1-501 series integrates a DC/AC True Sine Wave Inverter and an MPPT charger. This series is a high-performance true sine wave DC/AC inverter that converts the DC electricity from a system consisting of batteries and solar panels. IS1-501 is not only a high-frequency designed inverter but also fully digitally controlled by an advanced microprocessor. With true sine wave output, the IS1-501 series can provide 500W continuously, 550W for 60 seconds, and 1000W for 30 AC cycles. This series incorporates an MPPT solar charger, including constant current and constant voltage charging characteristics.
