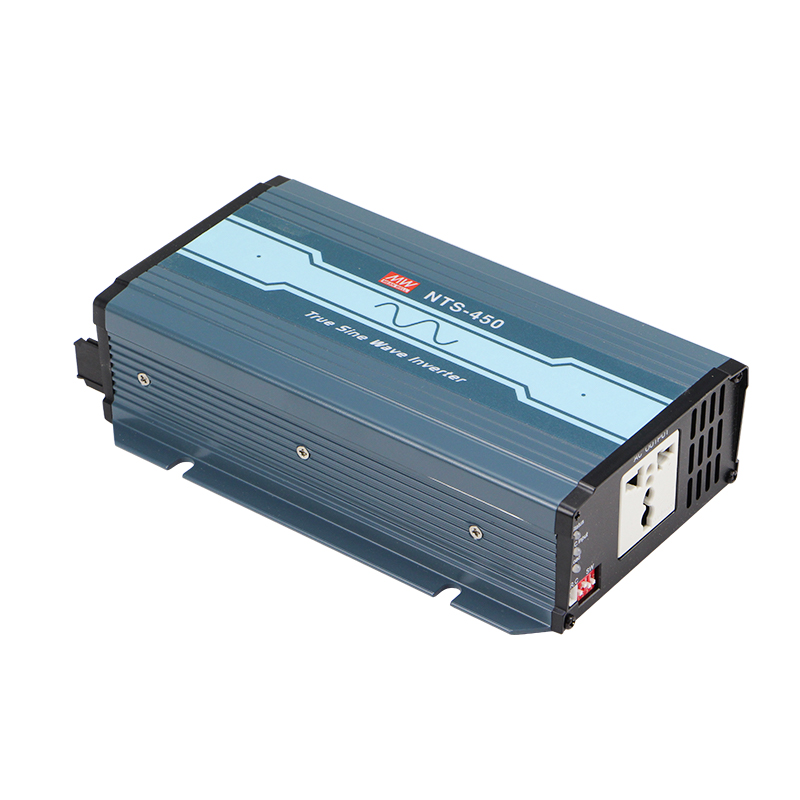

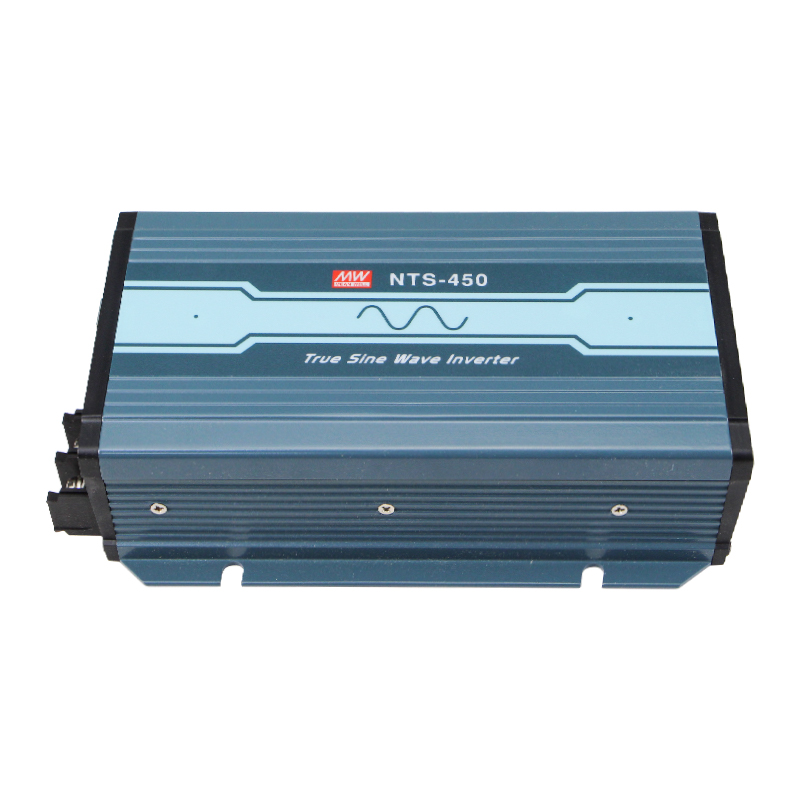

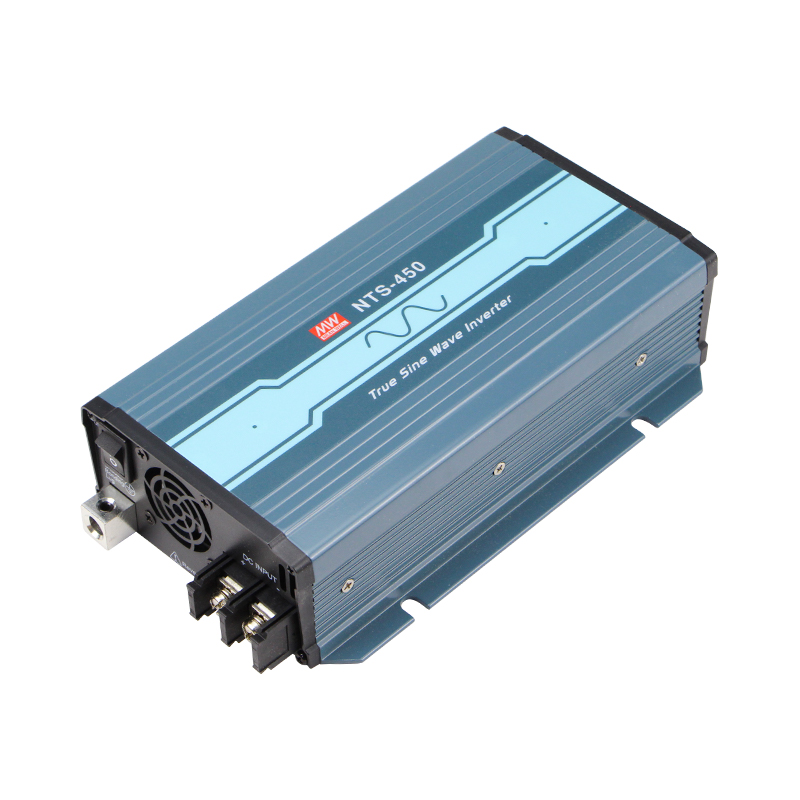

NTS Series   300~3200W  High Reliable True Sine Wave DC-AC Power Inverter     WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧  True sine wave output (THD<3%)                                                                            ‧ Home and office appliance

‧ Temperature controlled cooling fan                                                                         ‧ Power tools

‧ AC output voltage and frequency selectable by DlP S.W                                      ‧ Portable equipment

‧ No load disspation <1.5W at standby saving mode                                               ‧ Vehicle

‧ -25℃~+70℃ wide operating temperature                                                             ‧ Yacht

‧ Power ON-OFF remote control                                                                                  ‧ Off-grid solar power system

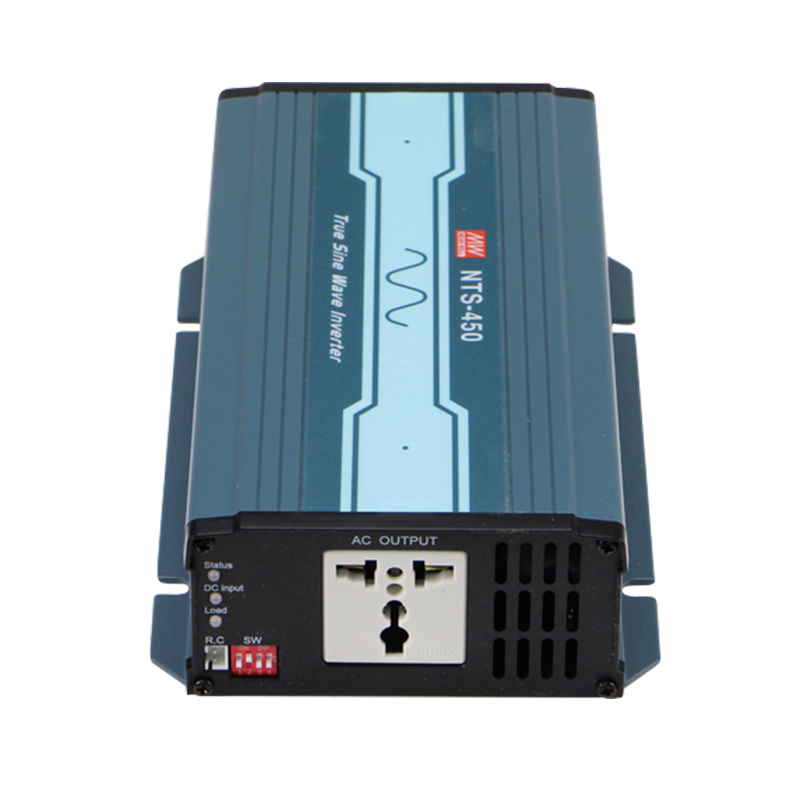

‧ Front panel indicator for operation status                                                              ‧ Wireless network

‧ Battery over discharge protection (low voltage disconnect)                               ‧ Telecom or datacom system

‧ Protections :Input : Reverse polarity/ DC low alarm/ DC low shutdown /Over voltage

‧ Suitable for lead-acid or li-ion batteries or gel battery

‧ Remote controller

‧ Support RS-232 communication

‧ Conformal coating

‧ 3 years warranty

■ Description

NTS series is a 300-3200W highly reliable off-grid true sine wave DC-AC power inverter. Its key features include: digital design with MCU control, streamlined control circuitry that quickly responds to environmental changes and improves reliability, high-quality fan with low acoustic noise,  adjustable AC output voltage and frequency, -25~+70°C wide operating temperature range, complete protection features, etc. Combined with batteries, the NTS series is suitable for use in residential, commercial, marine, automobile, mining, construction sites, and remote areas with no access to utility power. The output can be used to power fans, TVs, radios, phone chargers, PCs/laptops, lighting, induction stoves, air conditioners, electromechanical tools, communication equipment, power distribution cabinets, outdoor camping equipment, marine AC power, factory equipment, etc.
