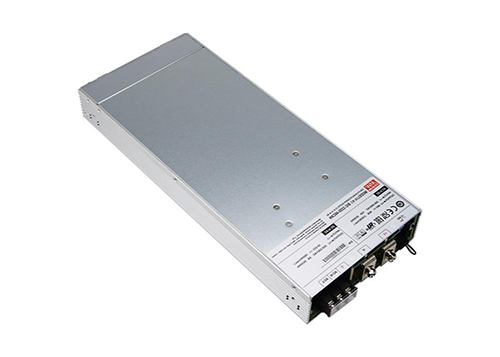

BIC Series     2000W AC⇄DC Bidirectional Inverter and Power Supply                       WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ 1U low profile design                                                                                                  ‧ Battery cell formation & grading

‧ <3% Low THDi in both conversion mode                                                                  ‧ V2G(Vehicle-to-grid)system

‧ Force charging and discharging mode with CANBus model                                  ‧ Marine battery charger module

‧ Ultrafast switching time between AC/DC and DC/AC of 1ms                                ‧ Electric scooter or vehicle charger station

‧ CB/TUV/UL 62368-1 and CB/TUV 62477-1 certified                                               ‧ Kinetic energy recovery system

‧ Active current sharing up to 19800W(up to 9 unit)                                                ‧ Electrolysis system

‧ Apply BlC-2200 to a three-phase AC power system                                               ‧ Wastewater treatment system

‧ Full digital design with 93% conversion efficiency for bothAC/DC and DC/AC conversion

‧ Complete protections: Anti-islanding protection, AC fail protection,DC OVP,OLP, OCP, OTP

‧ 5 years warranty

■ Description

The BlC-2200 is a 2.2kw bidirectional power supply with energy recycle function. lt is fully digital and1U height designed. lt is designed to control the power transferred from AC grid to Dc and DC to AC gricfor energy recycle. The implementation of a bidirectional power supply of the Blc-2200 allows battervmanufactures to charge the battery from AC grid and recycle the DC energy back into Ac grid in onesingle unit. With built-in functions such as active current sharing, remote ON/OFF control and CANBusmodel available, the BlC-2200 provides vast design flexibility for battery formation & test equipmentV2G(Vehicle-to-grid) system, charging station, laser system and kinetic recovery system.
