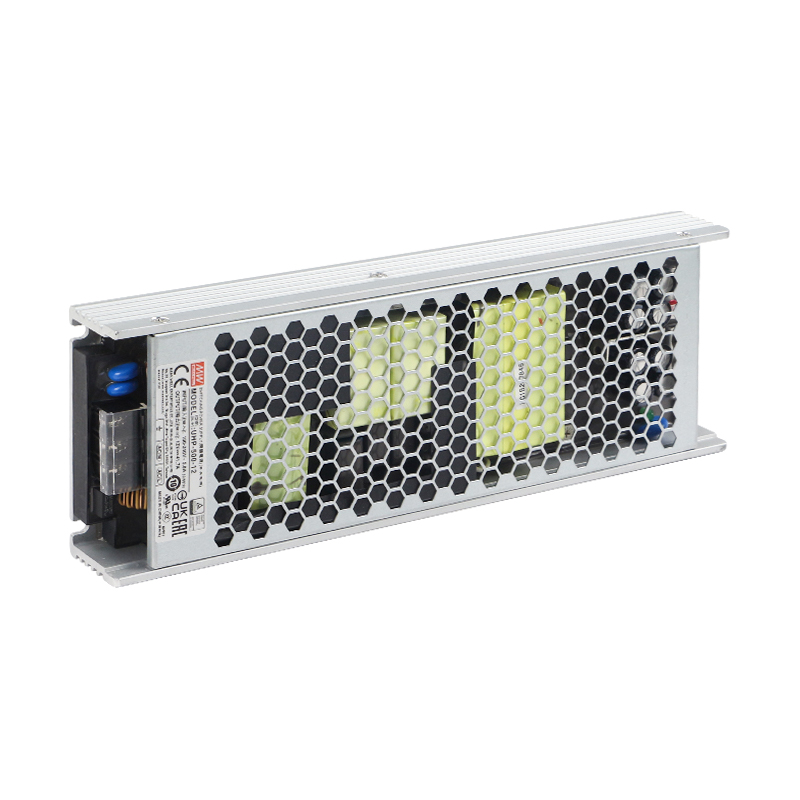

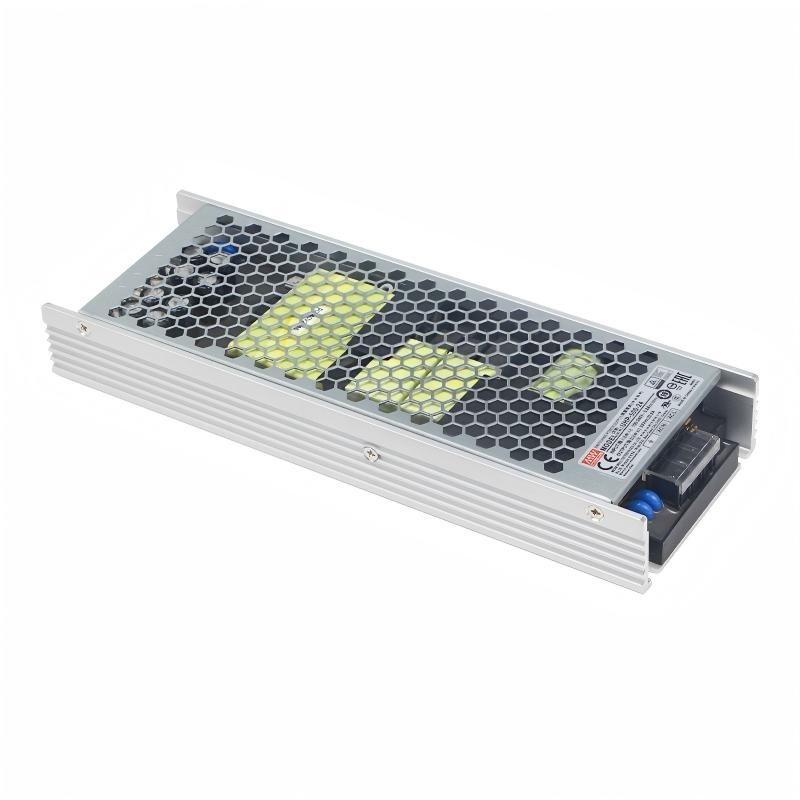

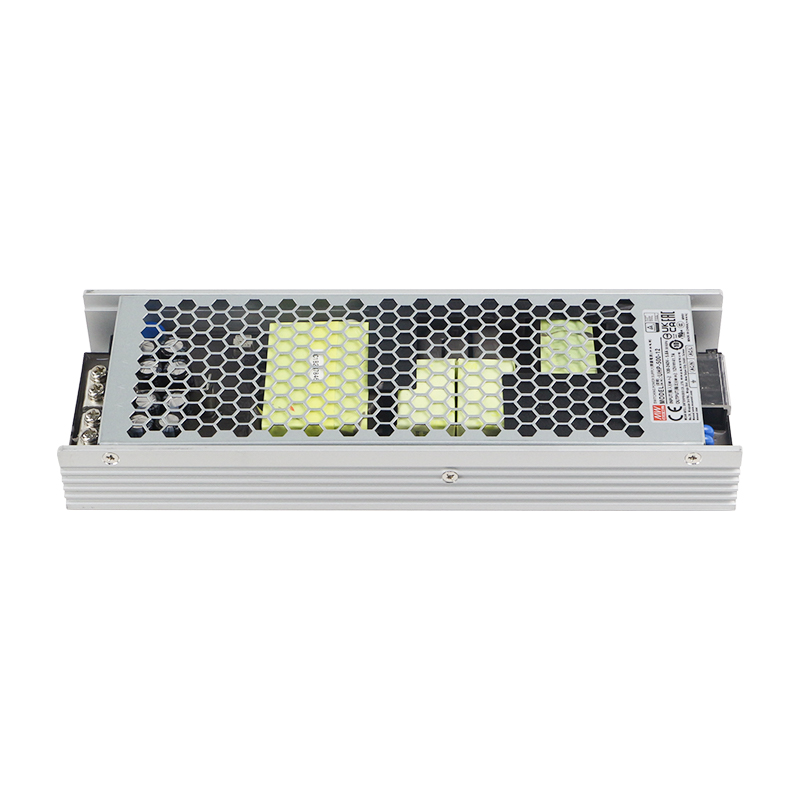

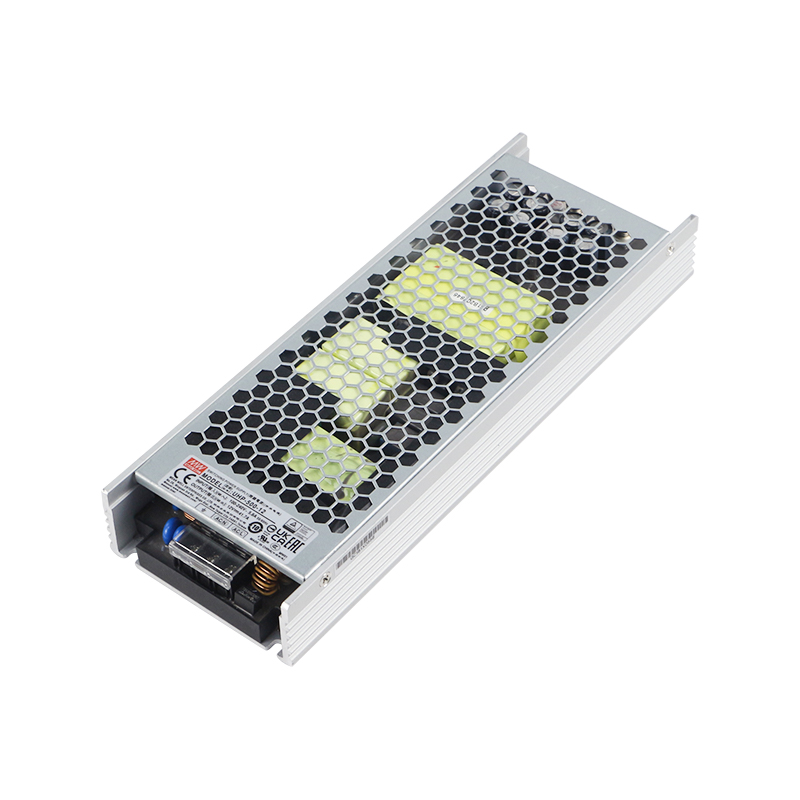

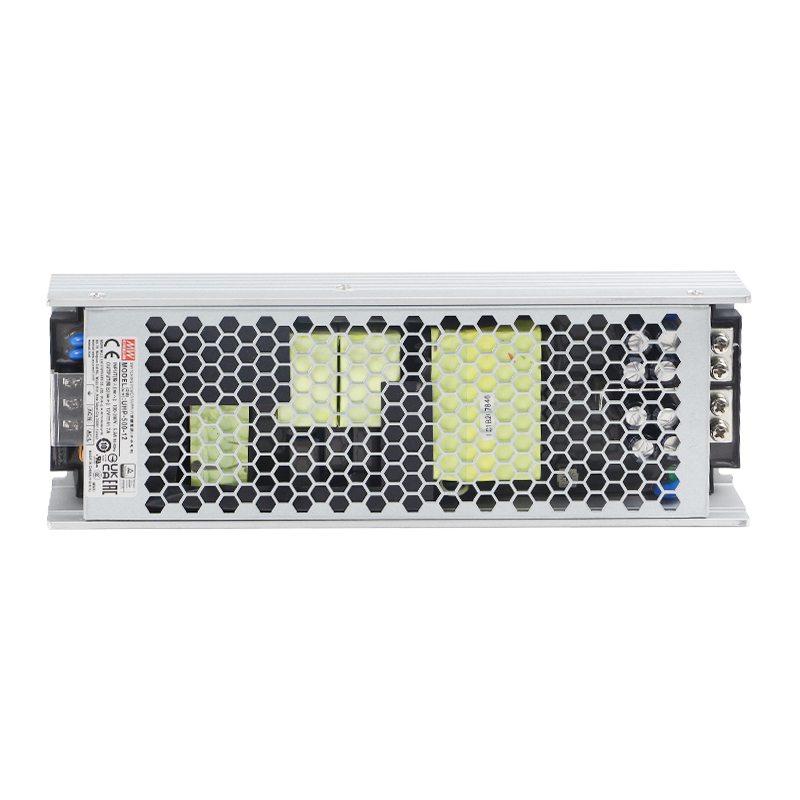

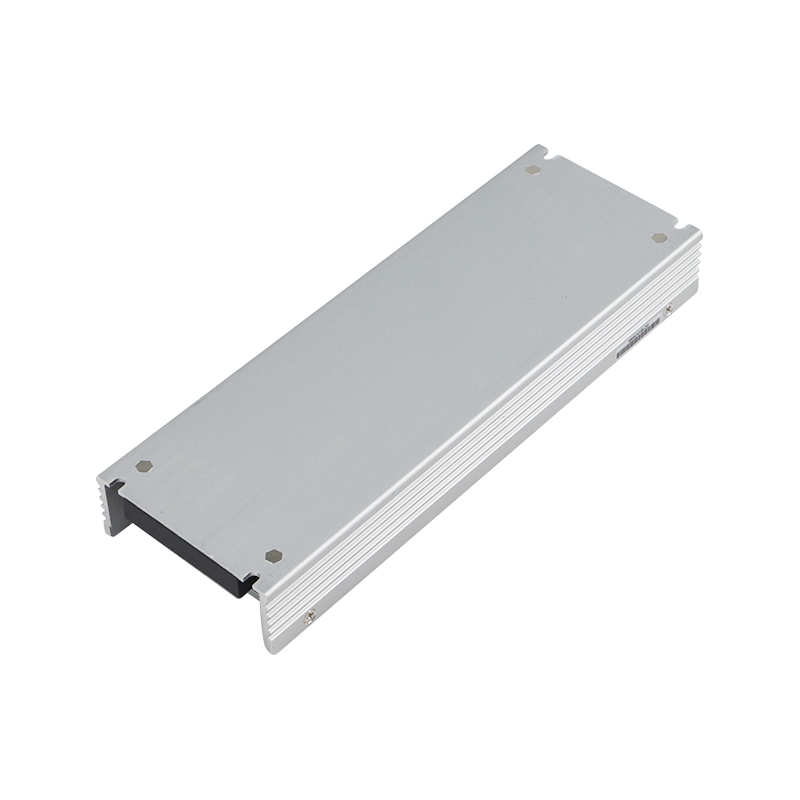

UHP Series     200~2500W Slim Switching Power Supply for LED Display                WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Slim and Low profile                                                                                                    ‧ Industrial automation machinery

‧ Fanless design                                                                                                                ‧ Industrial control system

‧ Withstand 300VAC surge input for 5 seconds                                                          ‧ Mechanical and electrical equipment,Electronic instruments

‧ Built-in active PFC function                                                                                          ‧ Electronic instruments,equipments orapparatus

‧ -30~+70℃ working temperature                                                                                ‧ LED display application

‧ Protections: Short circuit /OverloadOver voltage /Over temperature                ‧ Power Source Equipment for PoE(55V model)

‧ DC OK active signal and redundant function(option)

‧ Operating altitude up to 5000 meters

‧ LED indicator for power on

‧ 3 years warranty

■ Description

UHP series is a single-output slim-type power supply with a low-profile design. Adopting a full-range 90~264VAC input, the entire series provides output voltage options of 4.2V, 5V, 12V, 15V, 24V, 36V, 48V, and 55V. In addition to high efficiency of up to 95%, the whole series operates from -30°C to 70°C under air convection without a fan. The UHP-500 has complete protection functions and 5G anti-vibration capability. It complies with international safety regulations such as CE, TÜV, BS EN/EN62368-1, BS EN/EN60335-1, UL62368-1, and GB 4943.1. The UHP series serves as a high-performance power supply solution for various industrial applications.
