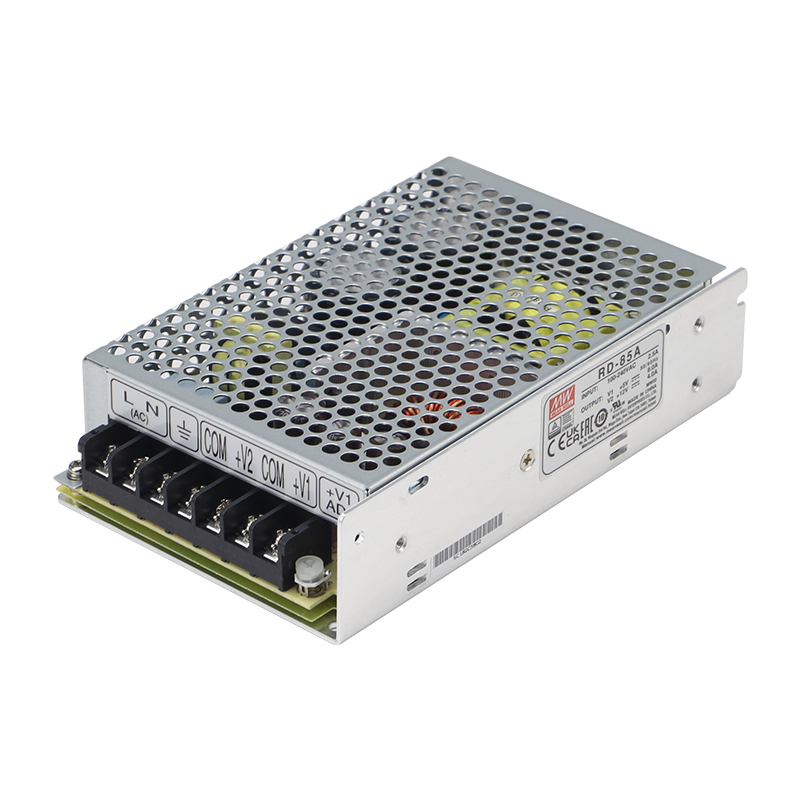

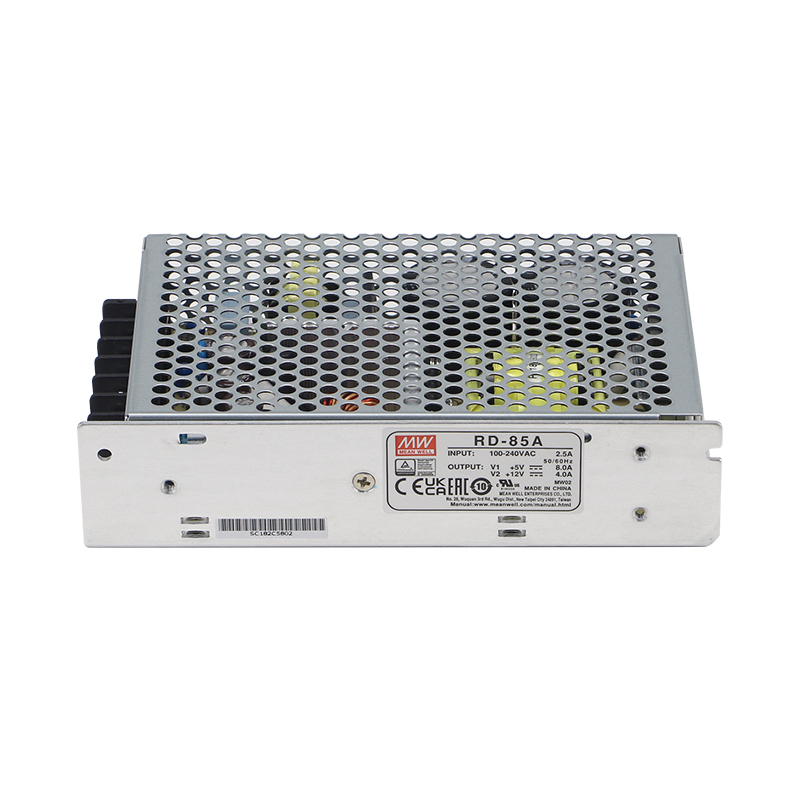

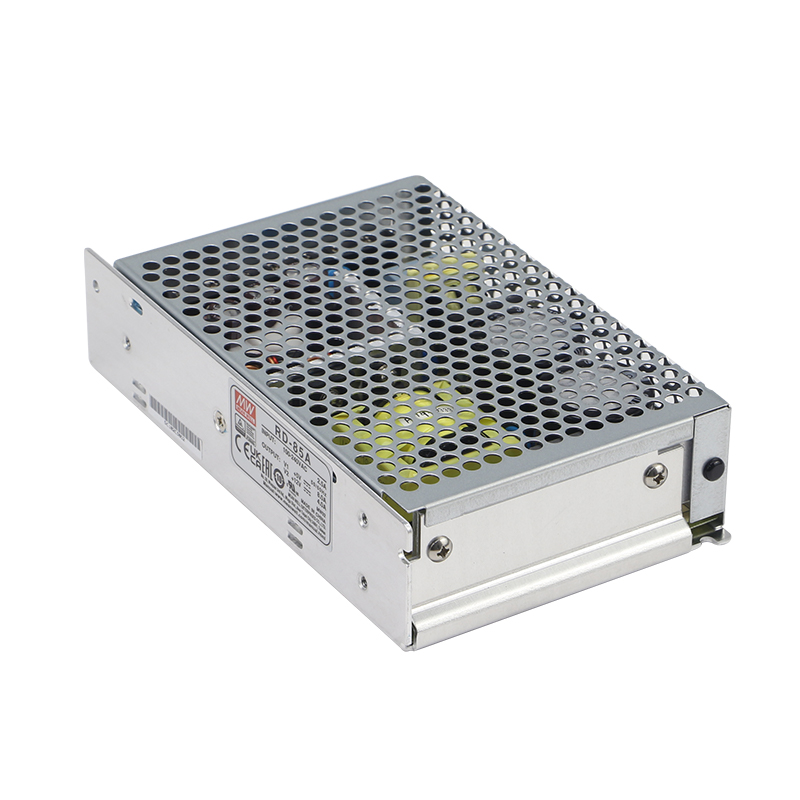

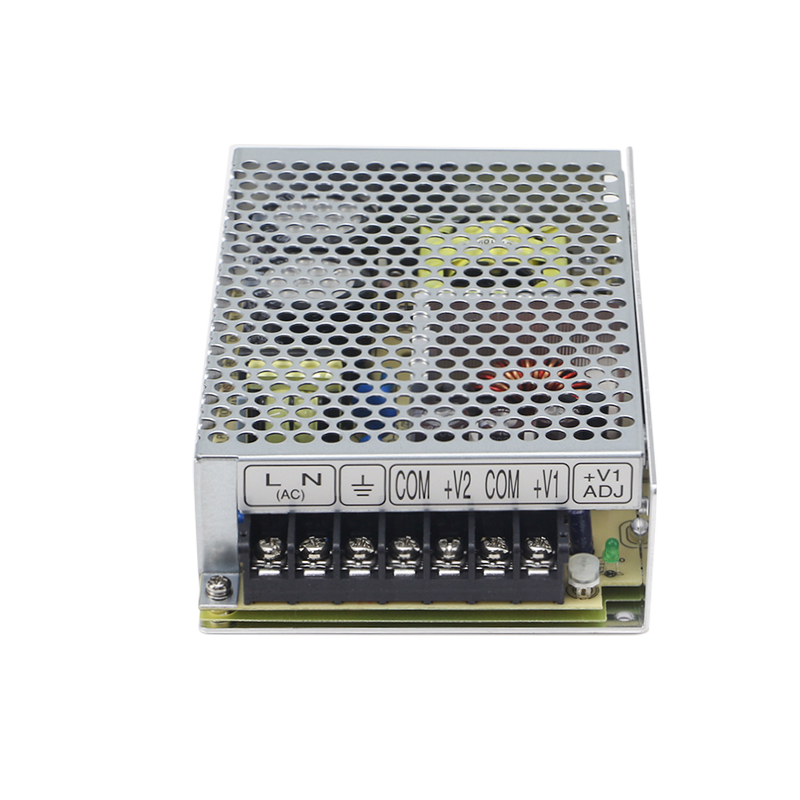

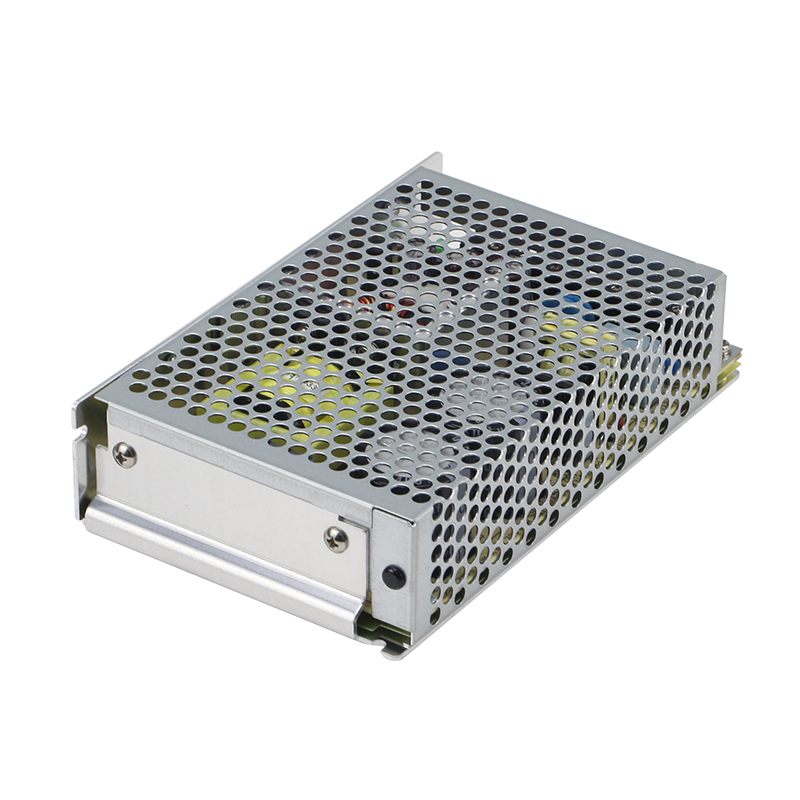

RD Series     35~125W Dule Output Switching Power Supply                                    WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Universal AC input/Full range                                                                                    ‧ Industrial automation machinery

‧ Protections: Short circuit/Overload /Over voltage                                                 ‧ Industrial control system

‧ Cooling by free air convection                                                                                    ‧ Mechanical and electrical equipment,Electronic instruments

‧ LED indicator for power on                                                                                         ‧ Electronic instruments,equipments orapparatus

‧ 100% full load burn-in test                                                                                          ‧ Household appliances

‧ All using 105℃ long life electrolytic capacitors

‧ Withstand 300VAC surge input for 5 second

‧ High operating temperature up to 70°℃

‧ No load power consumption<0.3W

‧ Withstand 5G vibration test

‧ High efficiency, long life and high reliability

‧ 3 years warranty

■ Description

LRS series is a single-output enclosed type power supply with a 30mm low profile design. It adopts a full range 85-264VAC input, and the entire series provides output voltage options of 3.3V, 5V, 12V, 15V, 24V, 36V, and 48V.

In addition to high efficiency of up to 91%, the design of the metallic mesh case enhances the heat dissipation of the LRS. The whole series operates from -30°C through 70°C under air convection without a fan. Delivering extremely low no-load power consumption (less than 0.3W), it allows the end system to easily meet worldwide energy requirements.

LRS has complete protection functions and 5G anti-vibration capability. It complies with international safety regulations such as TUV, BS EN/EN2368-1, BS EN/EN60335-1, BS EN/EN61558-1/-2-16, UL62368-1, and GB 4943.1.

LRS series serves as a high price-to-performance power supply solution for various industrial applications.
