CSP Series     3000W Single Output Switching Power Supply                                   WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ AC input 180~264VAC                                                                                                ‧ Factory control or automation apparatus

‧ Built-in active PFC function                                                                                        ‧ Test and measurement instrument

‧ High efficiency up to 93%                                                                                           ‧ Laser related machine

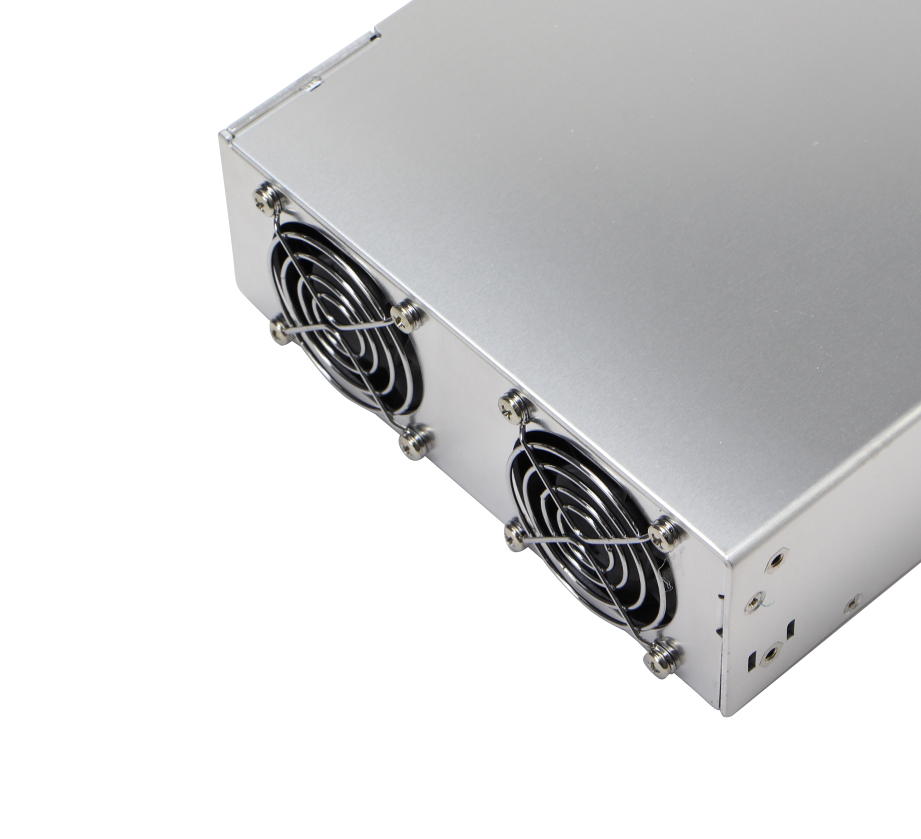

‧ Forced air cooling by built-in DC fans                                                                       ‧ UV curing equipment

‧ Output voltage /current programmable                                                                  ‧ Fish lamp

‧ Active current sharing up to 9000W(2+1)                                                               ‧ Burn-in facility

‧ Built-in remote ON-OFF control /auxiliary power/power OK signal

‧ Protections: Short circuit /Overload /Over voltage/Over temperature /Fan failure

‧ Conformal coating

‧ Programable output voltage & constant current function

‧ 5 years warranty

■ Description

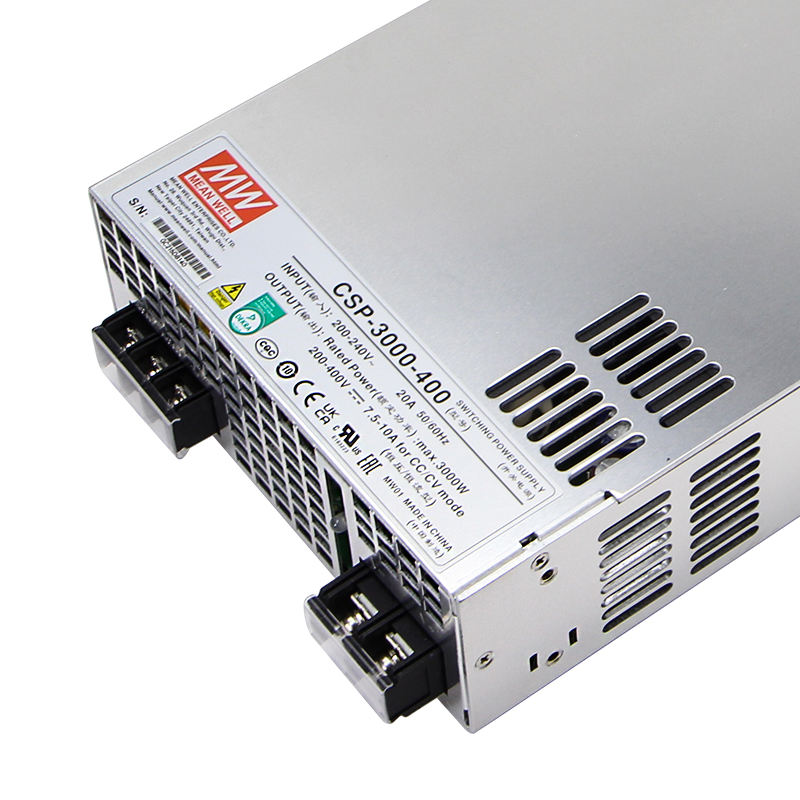

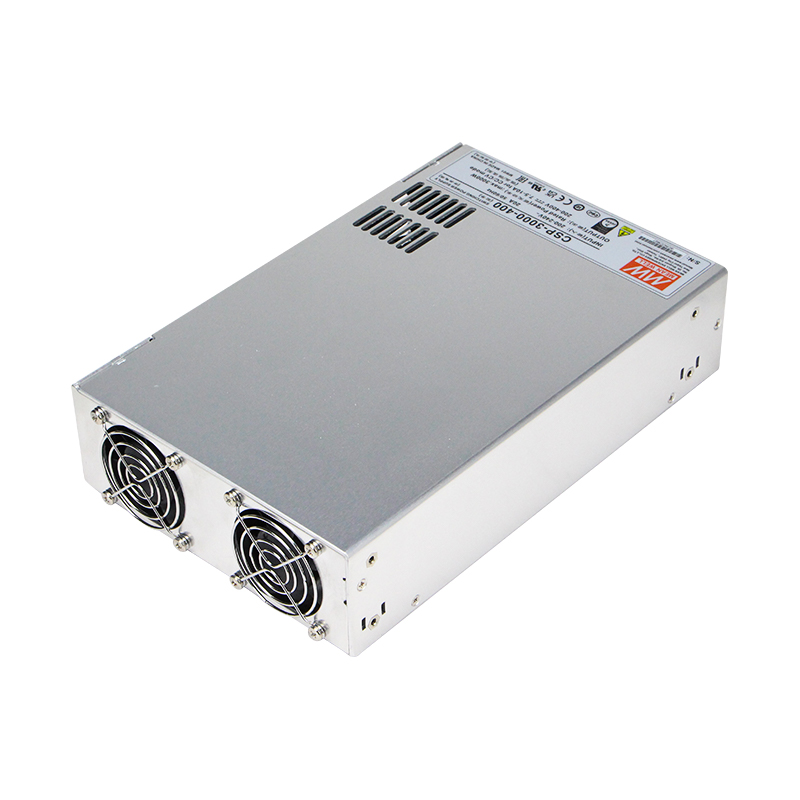

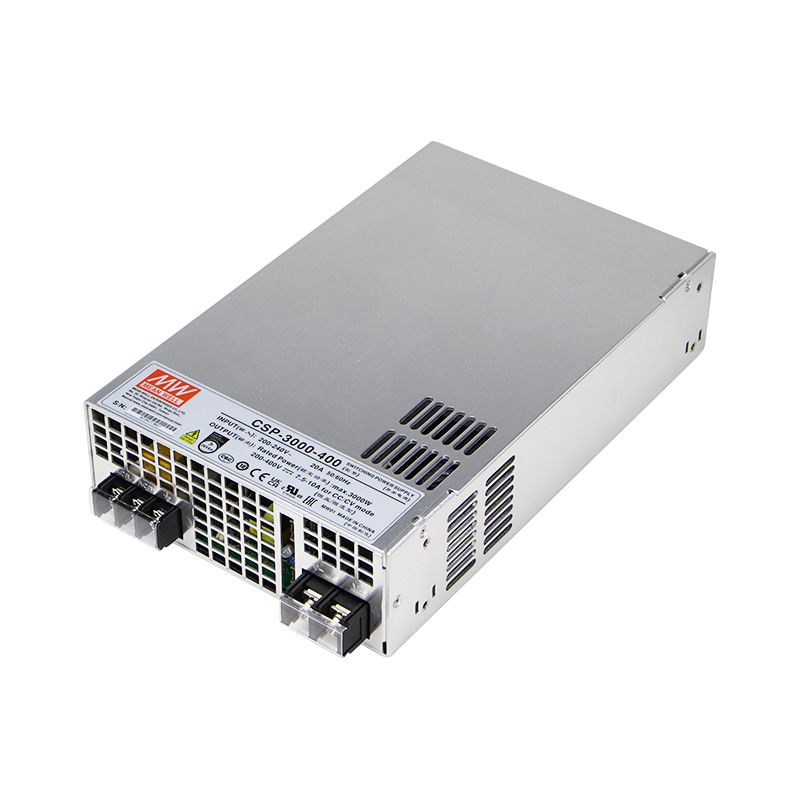

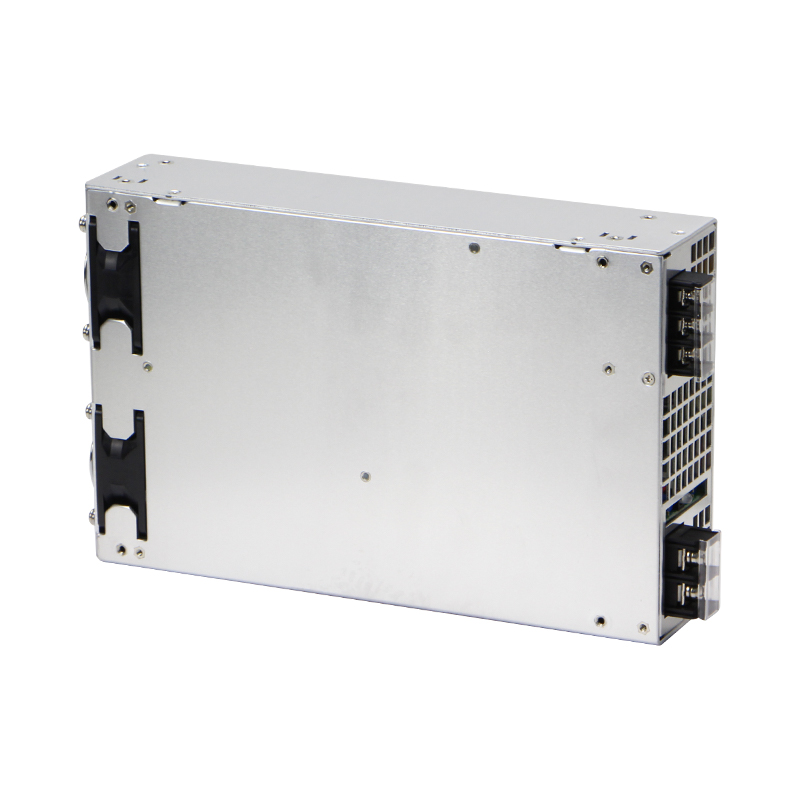

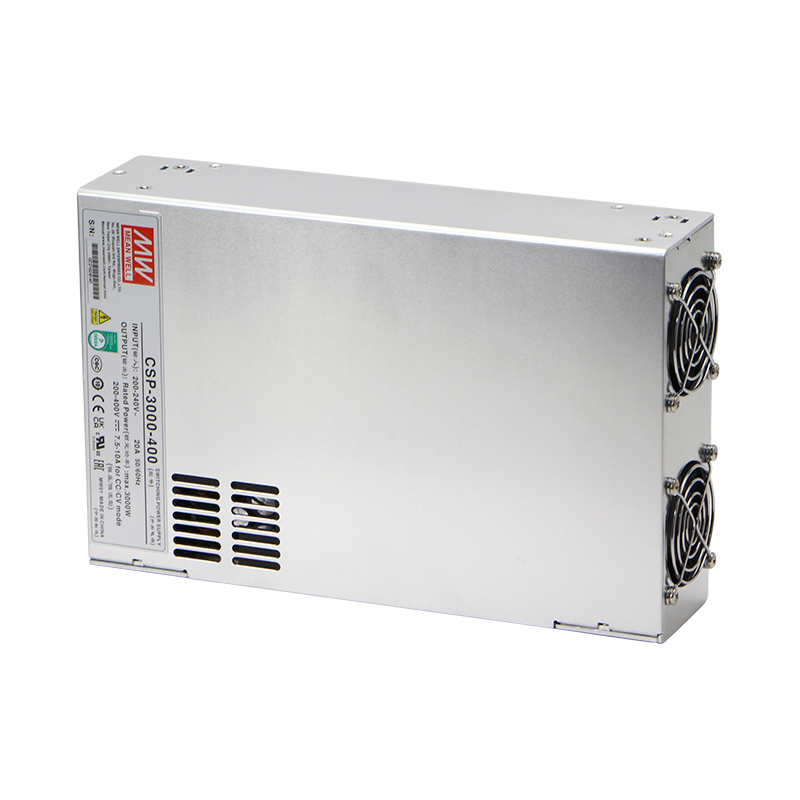

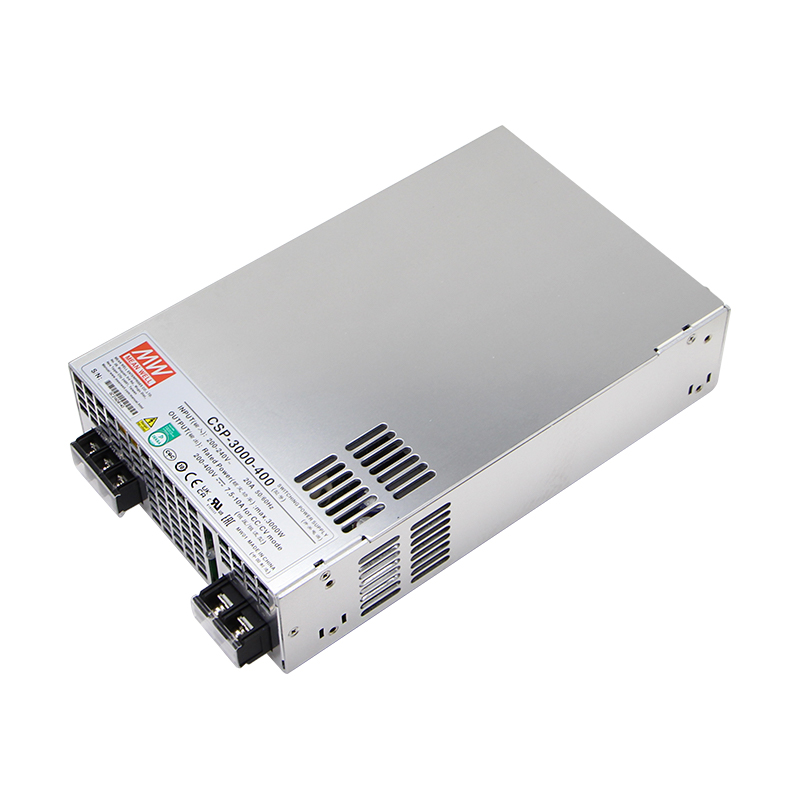

CSP-3000 is a 3KW single-output enclosed type AC/DC power supply. This series operates with an input voltage of 180~264VAC and offers models with the DC output most demanded by the industry. Each model is cooled by the built-in fan with fan speed control, working for temperatures up to 65°C. Moreover, the CSP-3000 provides vast design flexibility by equipping various built-in functions such as output programming, active current sharing, remote ON-OFF control, auxiliary power, etc.
