HDR Series     15~150W 60W Ultra Slim Step Shape DlN Rail                                 WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Ultra slim design with 52.5mm(3SU) width                                                            ‧ Household control system

‧ Universalinput 85~264VAC(277VAC operational)                                                   ‧ Building automation

‧ No load power consumption<0.3W                                                                          ‧ Industrial control system

‧ Isolation class II                                                                                                             ‧ Factory automation

‧ Pass LPS (Limited power source)                                                                               ‧ Electro-mechanical apparatus

‧ DC output voltage adjustable

‧ Protections: Short circuit/Overload /Over voltage

‧ Cooling by free air convection (working temperature:-30~+70°C)

‧ DIN rail TS-35/7.5 or 15 mountable

‧ LED indicator for power on

‧ 3 years warranty

■ Description

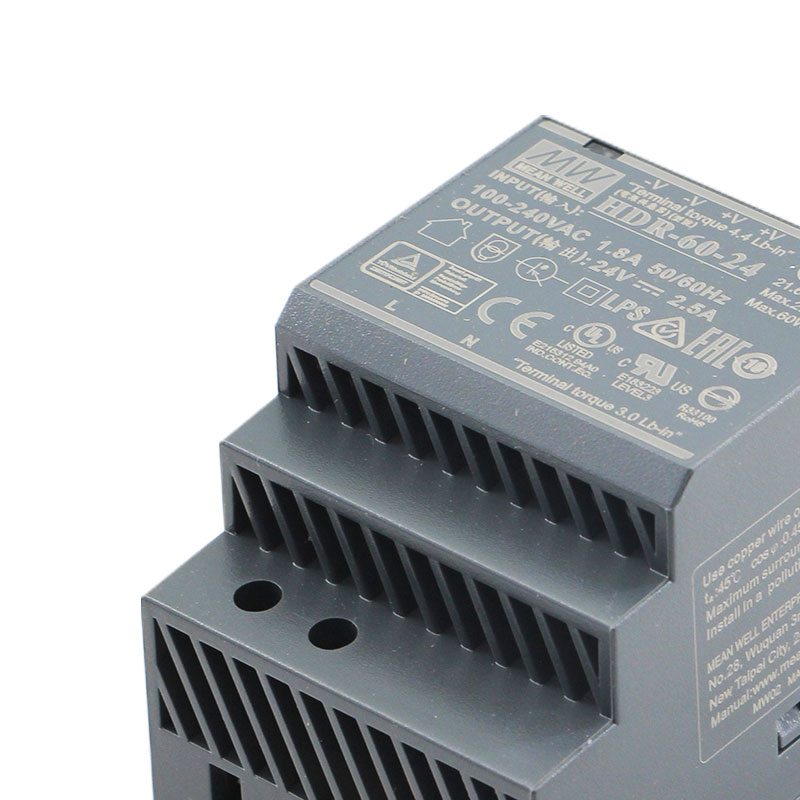

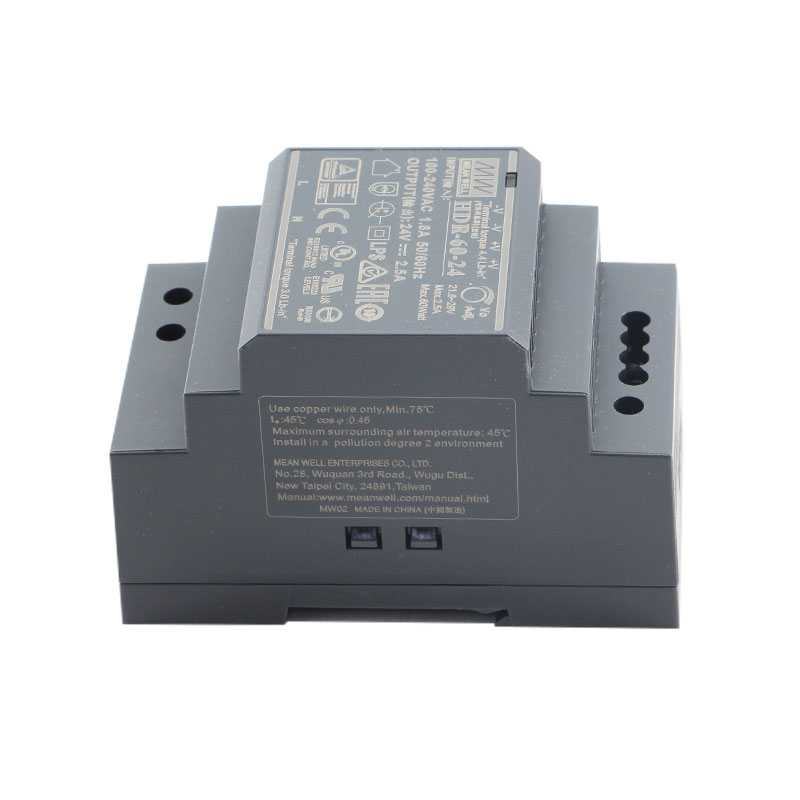

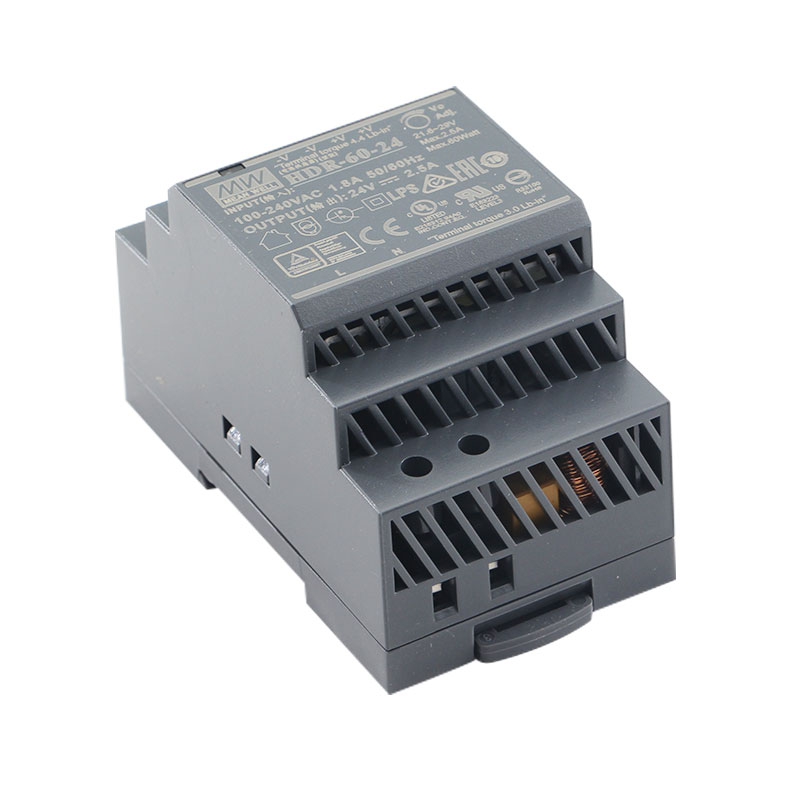

HDR is an economical ultra-slim 15-150W DIN rail power supply series, designed to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 52.5mm (3SU) in width, which allows for space-saving inside the cabinets. The entire series adopts a full-range AC input from 85VAC to 264VAC (277VAC operational) and conforms to BS EN/EN61000-3-2, the norm regulated by the European Union for harmonic current. The HDR is designed with a plastic housing that effectively prevents users from electrical hazards. With working efficiency of up to 91%, the entire series can operate at ambient temperatures between -30°C and 70°C under air convection. The complete protection functions and relevant certificates for home automation and industrial control apparatus (IEC62368-1, UL508, UL62368-1, BS EN/EN61558-2-16) make the HDR a very competitive power supply solution for household and industrial applications.
