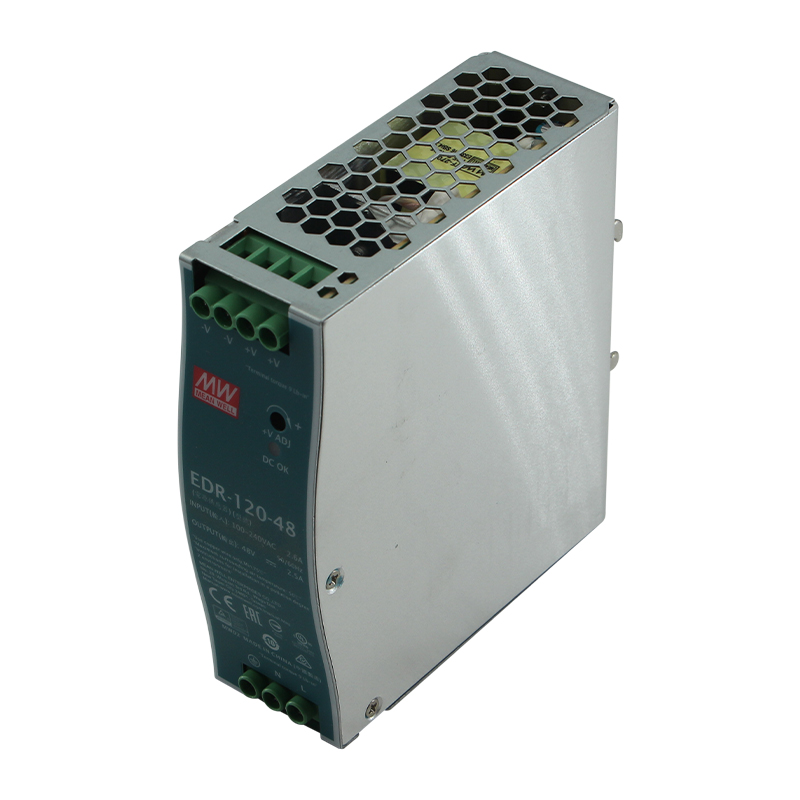

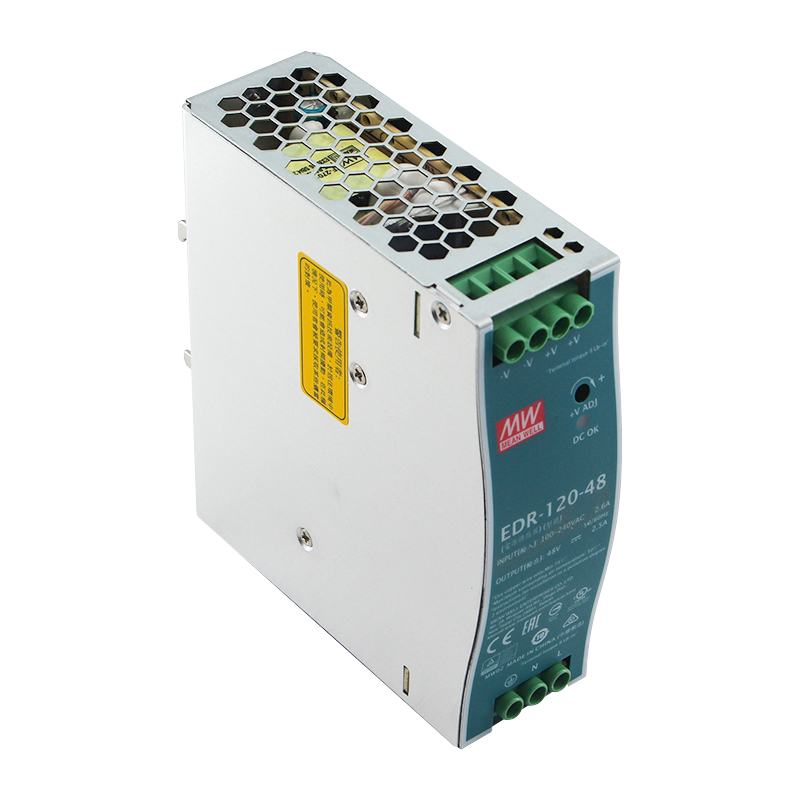

EDR Series     75~150W Single Output Din Rail Power Supply                               WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Universal AC input/Full range                                                                                    ‧ Industrial control system

‧ Protections: Short circuit/Overload /Over voltage/Over temperature               ‧ Semi-conductor fabrication equipment

‧ Cooling by free air convection                                                                                    ‧ Factory automation

‧ Can be installed on DlN rail TS-35/7.5 or 15                                                             ‧ Electro-mechanica

‧ UL 508 (industrial control equipment) approved

‧ BS EN/EN61000-6-2(BS EN/EN50082-2)industrial immunity level

‧ 100% full load burn-in test

‧ 2 years warranty

■ Description

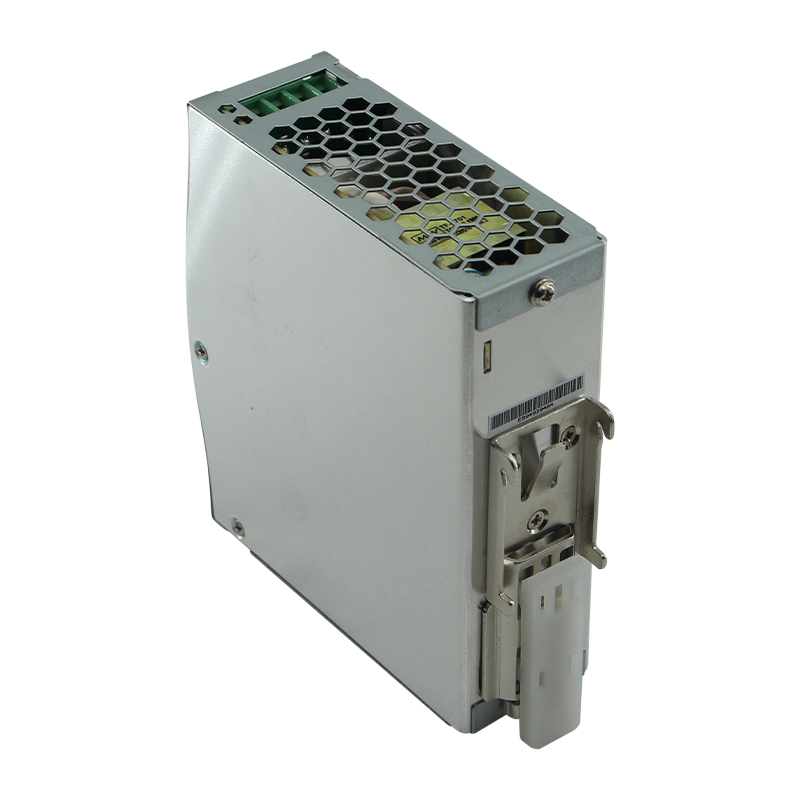

EDR is an economical slim 75-150W DIN rail power supply series. This series is designed to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 40mm in width, which allows for space-saving inside the cabinets. The entire series adopts a full-range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2 (≤80% load), the norm the European Union regulates for harmonic current.

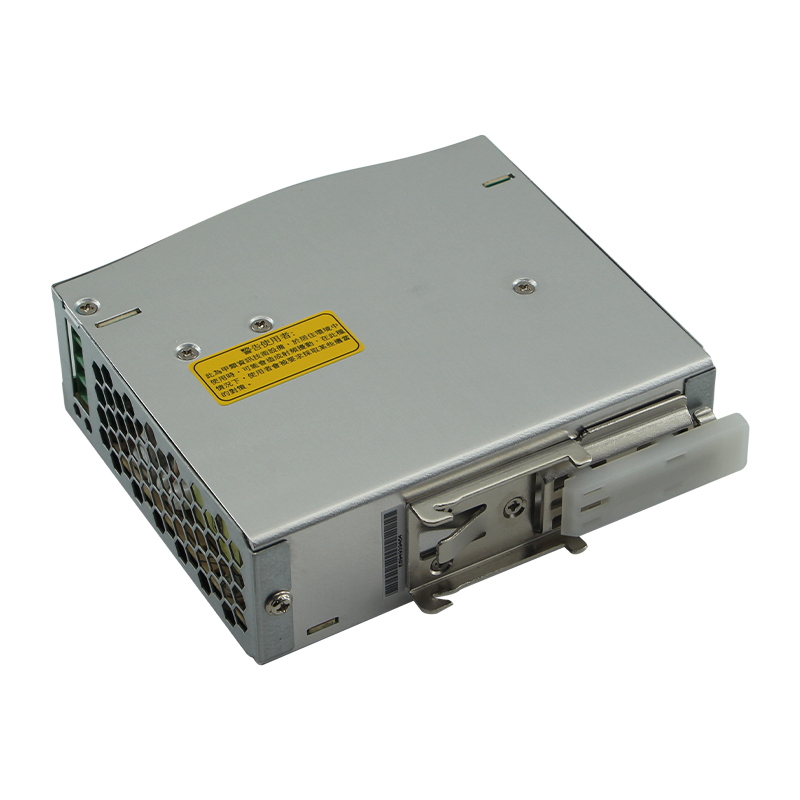

The EDR is designed with a metal housing that enhances the unit's power dissipation. With working efficiency of up to 87%, the entire series can operate at ambient temperatures between -20°C and 60°C under air convection. It is equipped with a constant current mode for overload protection, suitable for various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV, BS EN/EN62368-1, etc.) make the EDR a very competitive power supply solution for industrial applications.
