DRA Series     40~60W Single Output Din Rail Power Supply                                 WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Universal AC input/Full range                                                                                    ‧ Machine vision inspection systemPlant

‧ Protections:Short circuit/Overload/Over voltage                                                   ‧ Plant cultivation system

‧ Can be installed on DIN rail TS-35/7.5 or 15

‧ Output Voltage adjustable through internal potentiometer

‧ Output Current adjustable through external 1~10Vdc, PWMsignal or resistance

‧ Cooling by free air convection

· Pass LPS

‧ LED indicator for power on

‧ 100% full load burn-in test

‧ 3 years warranty

■ Description

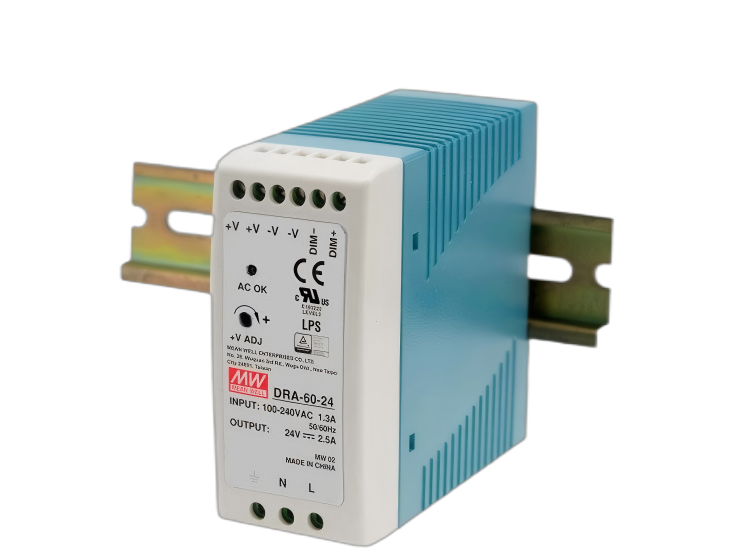

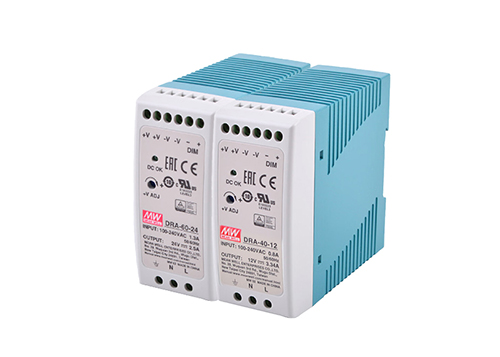

DRA is a 40-60W AC/DC DIN rail power supply, featuring adjustable output current. Users are able to easily change the constant output current level via 1~10VDC, PWM signal, or resistance. The DRA can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm, making it well-suited for installation in limited spaces. DRA accepts universal AC input between 90VAC and 264VAC. With efficiency of up to 87%, the entire series can operate under free air convection from -30°C to 70°C.
