NDR Series     75~480W Single Output Switching Power Supply                             WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Universal AC input/Full range                                                                                    ‧ Industrial control system

‧ Built-in active PFC function                                                                                          ‧ ISemi-conductor fabrication equipment

‧ Protections: Short circuit/Overload /Over voltage/Over temperature                ‧ Factory automation

‧ Cooling by free air convection                                                                                     ‧ Electro-mechanica

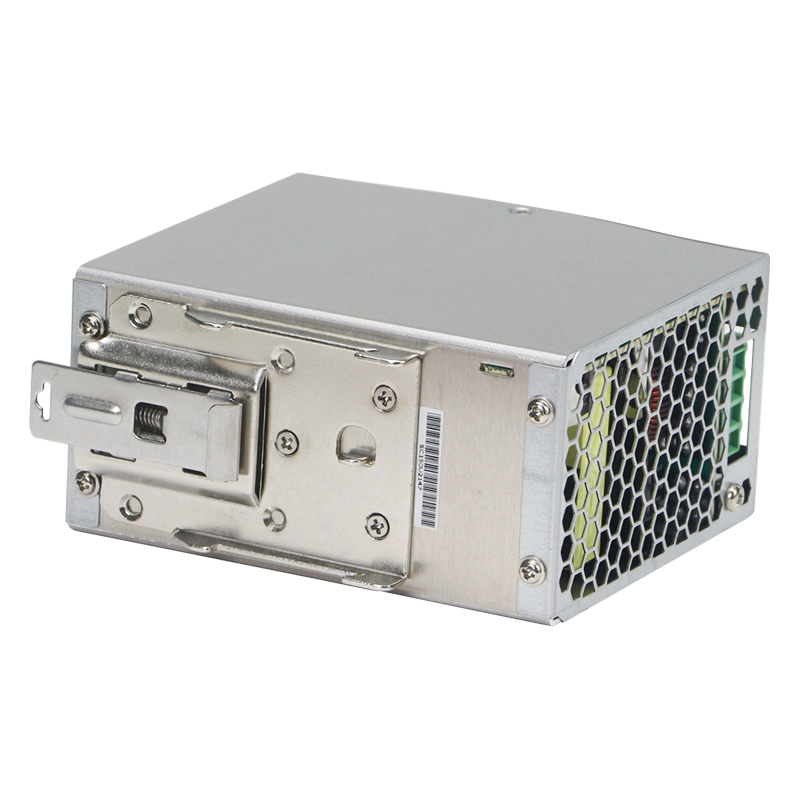

‧ Can be installed on DlN rail TS-35/7.5 or 15

‧ UL 508 (industrial control equipment) approved

‧ BS EN/EN61000-6-2(BS EN/EN50082-2)industrial immunity level

‧ 100% full load burn-in test

‧ Over voltage category IIl

‧ 3 years warranty

■ Description

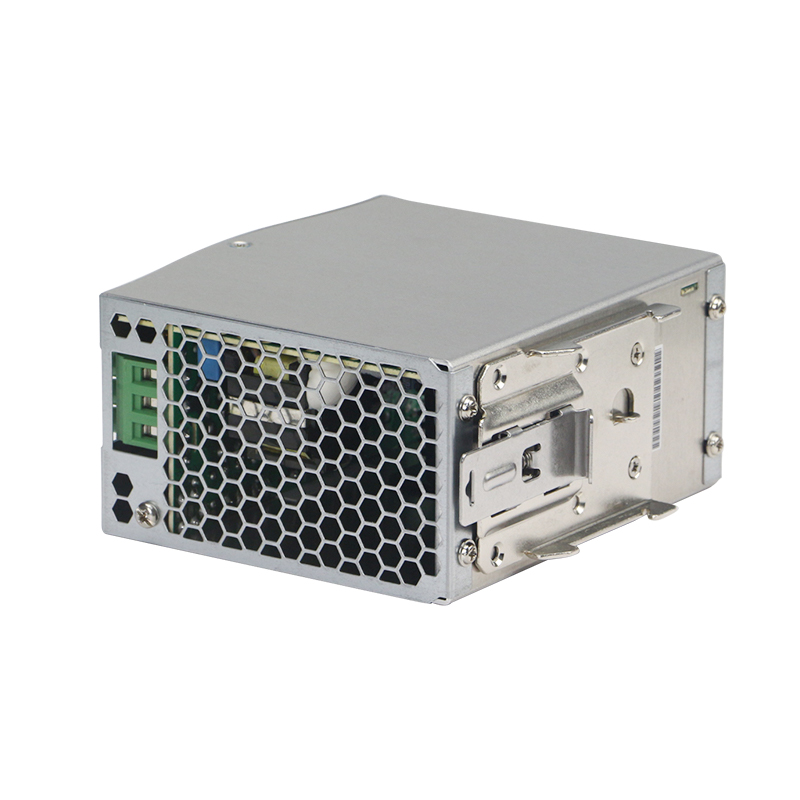

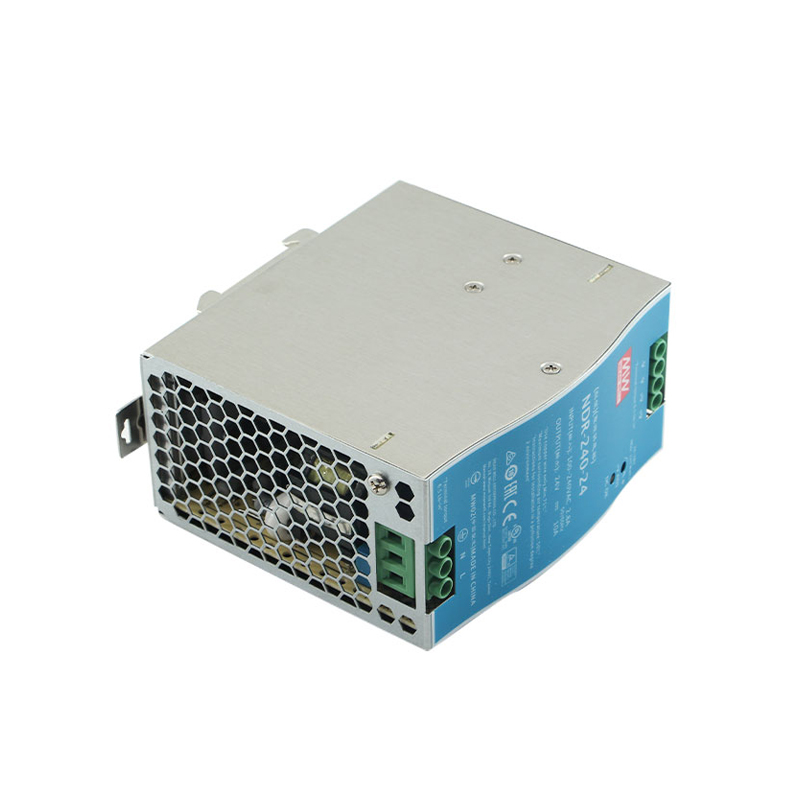

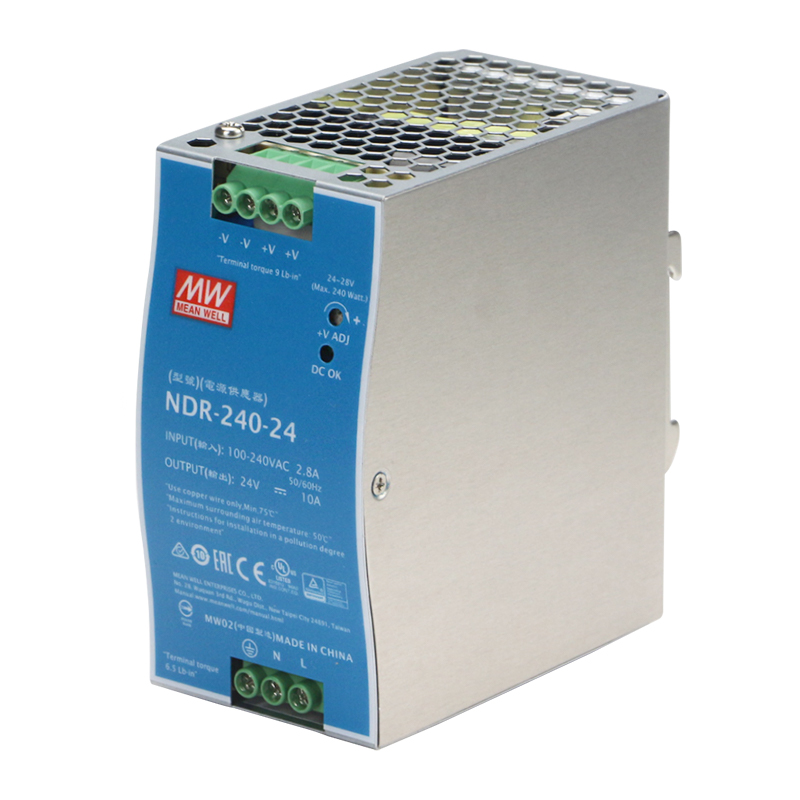

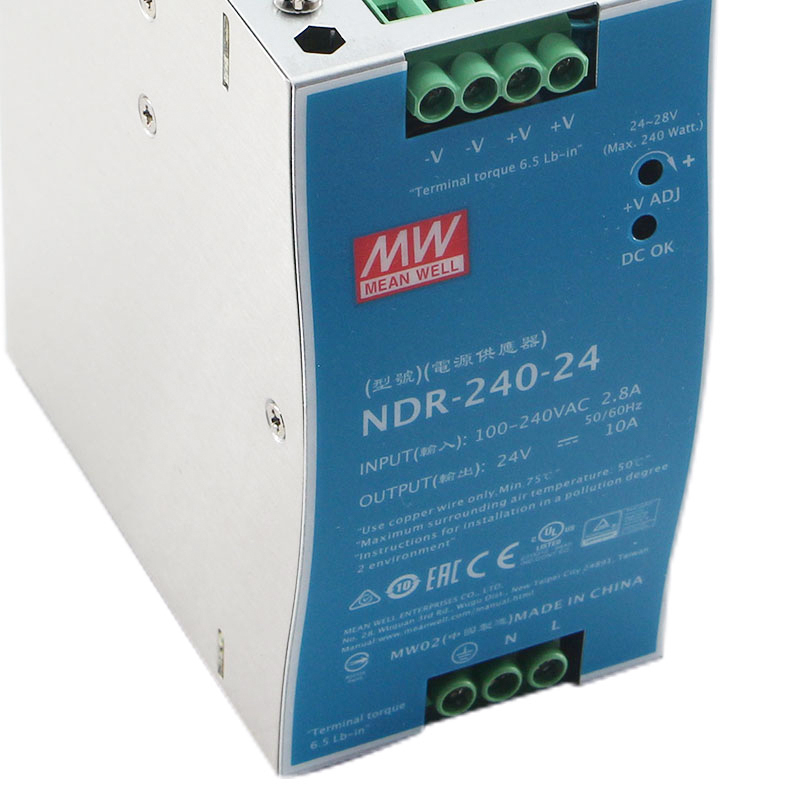

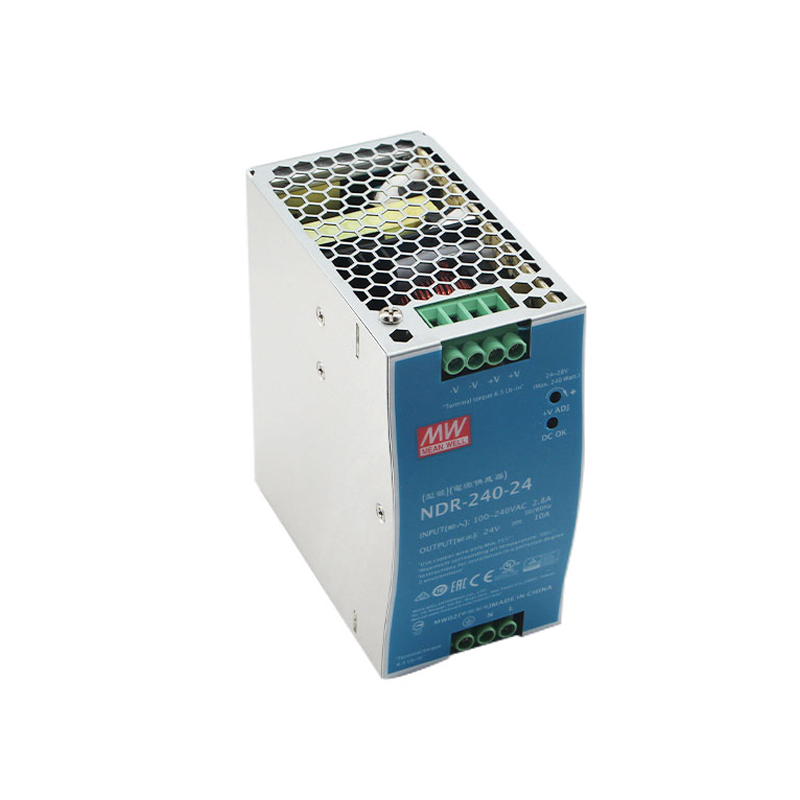

NDR is an economical slim 75-480W DIN rail power supply series, designed to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 63mm in width, which allows for space-saving inside the cabinets. The entire series adopts a full-range AC input from 90VAC to 264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. The NDR is designed with a metal housing that enhances the unit's power dissipation. With working efficiency of up to 90%, the entire series can operate at ambient temperatures between -20°C and 70°C under air convection. It is equipped with a constant current mode for overload protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certifications for industrial control apparatus (UL508, TUV, BS EN/EN62368-1, etc.) make the NDR a very competitive power supply solution for industrial applications.
