TDR Series     240~960W Three Phase Industrial Din Rail Power Supply                 WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Three-Phase 340~550VAC wide range input(Dual phase possible)                     ‧ Industrial control system

‧ Width only 85.5mm                                                                                                      ‧ Semi-conductor fabrication equipment

‧ Built-in active PFC function compliance to BS EN/EN61000-3-2                           ‧ Factory automation

‧ High efficiency 93% and low power dissipation                                                       ‧ Electro-mechanica

‧ Protections: Short circuit/Overload /Over voltage /Over temperature

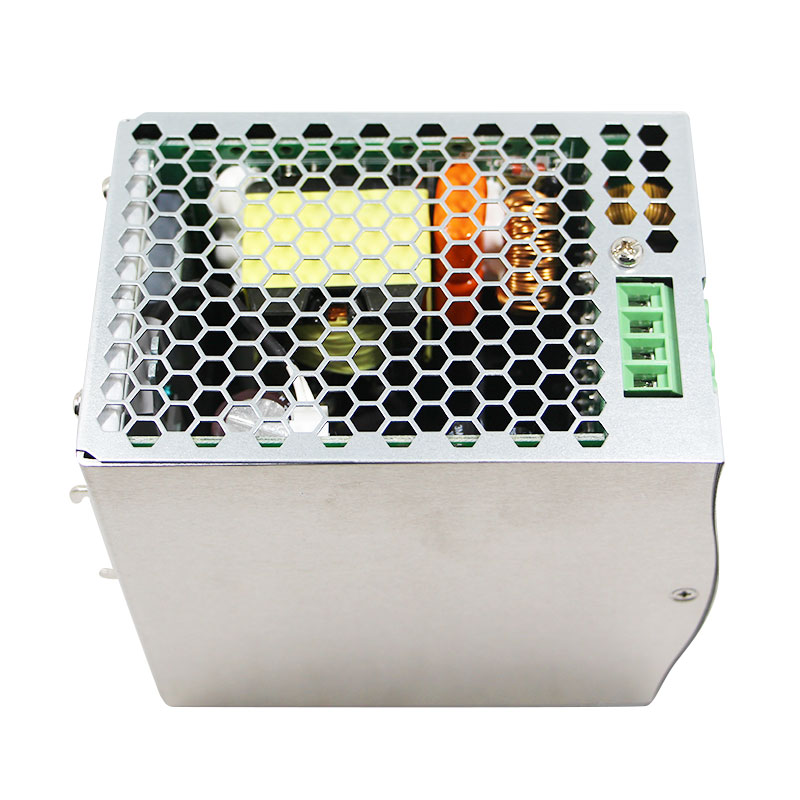

‧ Cooling by free air convection

‧ Built-in constant current limiting circuit

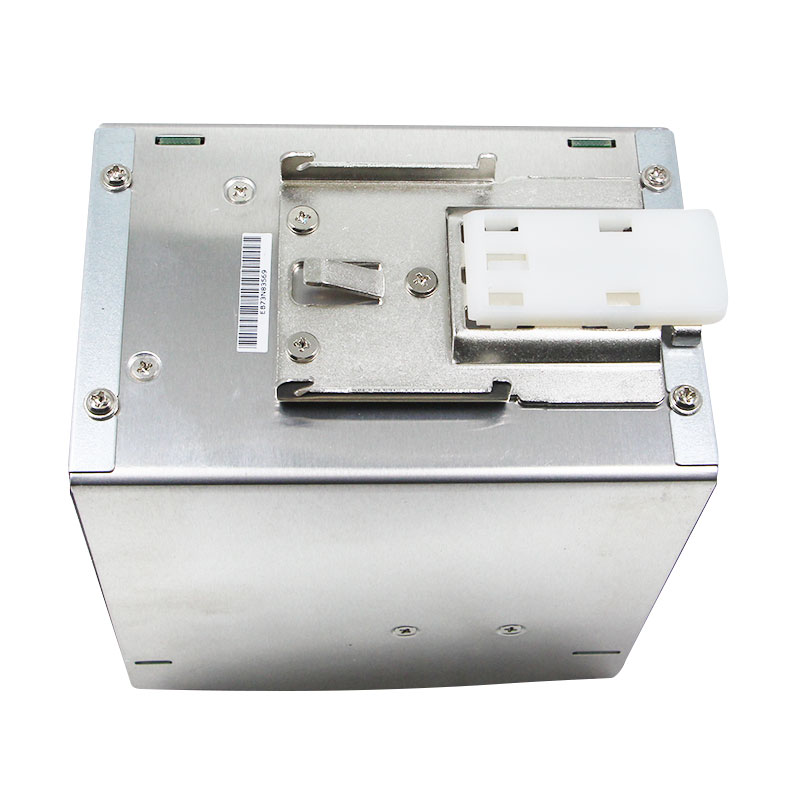

‧ Can be installed on DlN rail TS-35/7.5 or 15

‧ UL508(industrial control equipment)approved

‧ BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level

‧ Optional DC OK relay contact

‧ 3 years warranty

■ Description

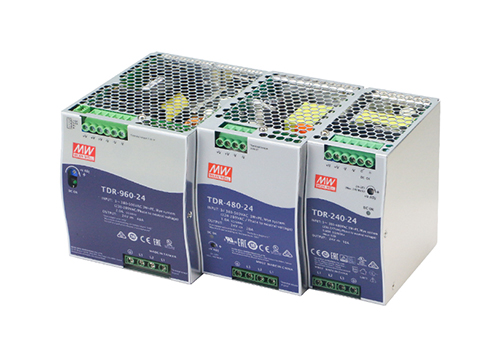

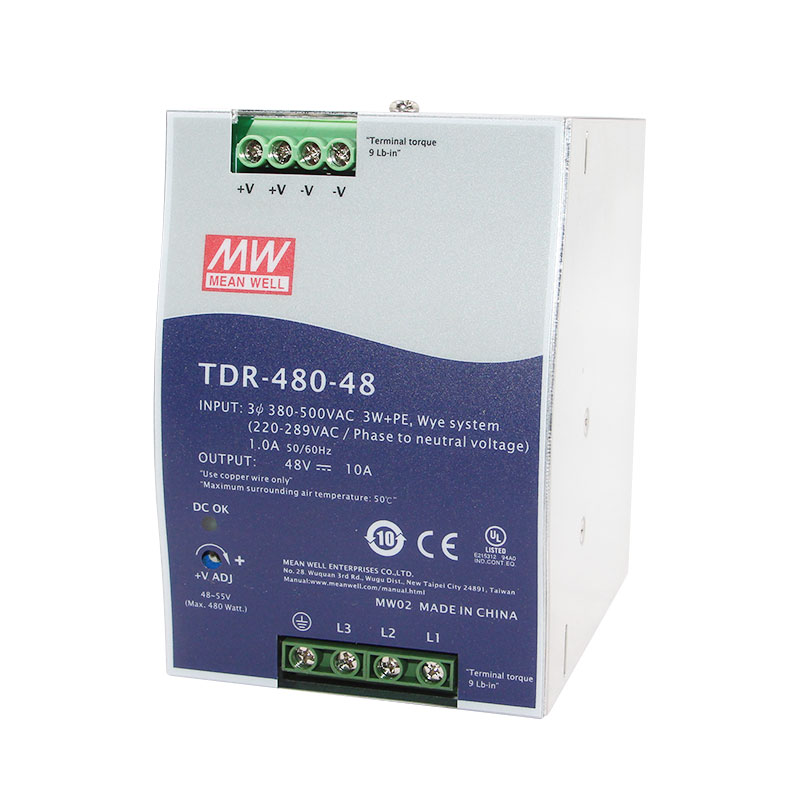

TDR is an economical slim 240-960W DIN rail power supply series, designed to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed to be 85.5mm in width, which allows for space-saving inside the cabinets. The entire series adopts a full-range AC input from 3∅ 340VAC to 550VAC (dual-phase operation possible) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.

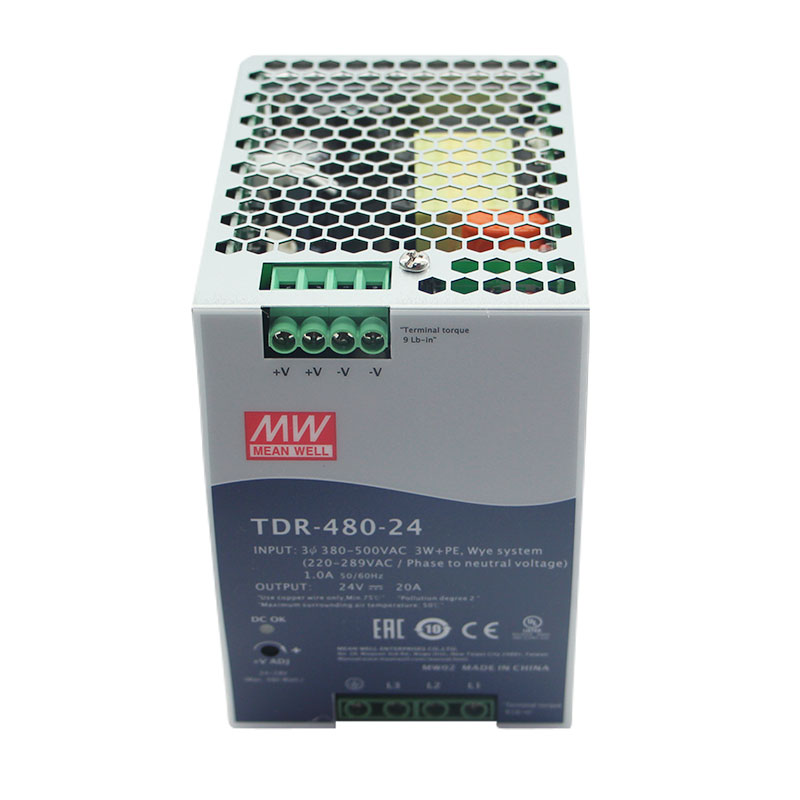

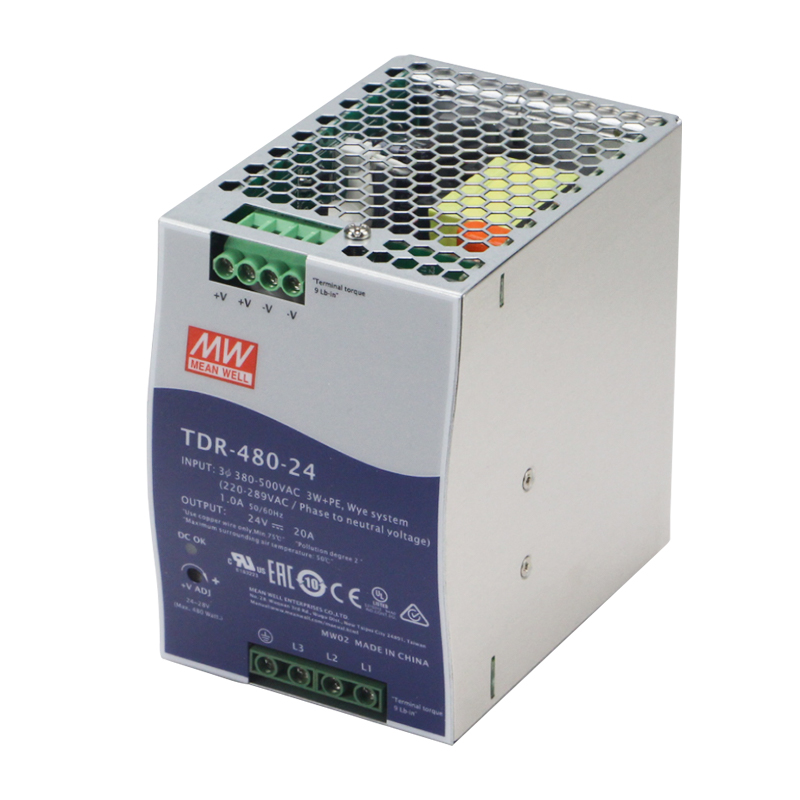

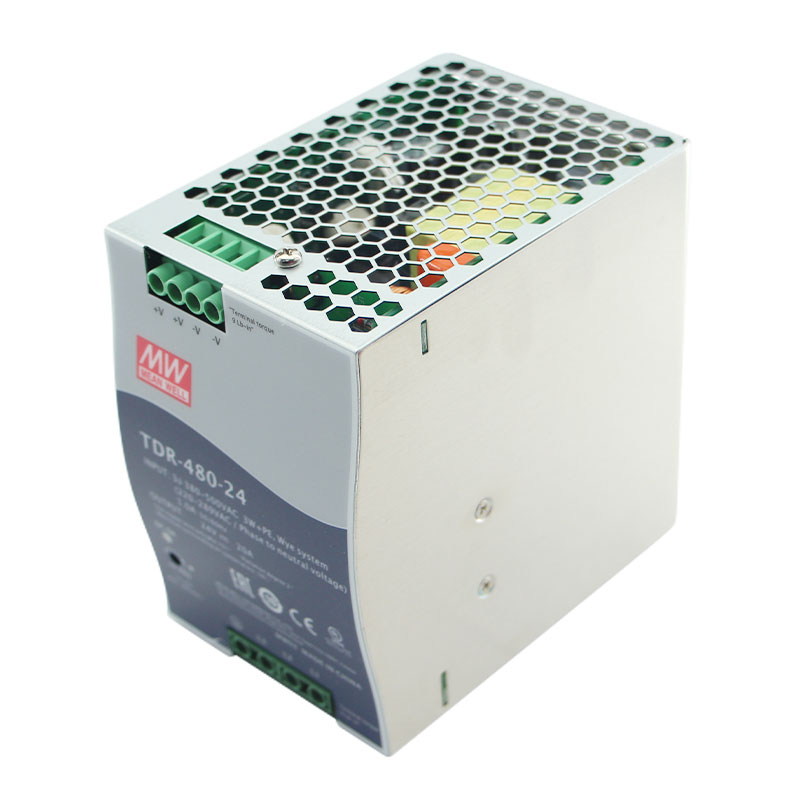

TDR is designed with a metal housing that enhances the unit's power dissipation. With working efficiency of up to 93%, the entire series can operate at ambient temperatures between -20°C and 70°C under air convection. It is equipped with constant current mode for overload protection, suitable for various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, IEC 62368-1, CB approved by UL) make the TDR-480 a very competitive power supply solution for industrial applications.
