XLG Series     20~320W Constant Power Mode LED Driver                                 WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Wide input range 100~305V AC( Class l)                                                                  ‧ Skyscraper lighting

‧ Full power output at 70~100% Constant power mode operation                        ‧ Industrial control system

‧ Metal case with lP67, suitable for outdoor application                                          ‧ Floodlight Lighting

‧ Surge protection with 6KV/4KV(10KV/6KV optional)                                               ‧ Stage lighting

‧ 3 in 1 dimming function (Dim to off and lsolation design)                                      ‧ Fishing lighting

‧ Protection functions:OVP/SCP/OCP/OTP                                                                    ‧ Bay lighting

‧ Life time >50,000 hours and 5 years warranty                                                          ‧ LED strip lighting (ABv type)

                                                                                                                                             ‧ Agricultural lighting (ABv type)

                                                                                                                                             ‧ Horticulture lighting

                                                                                                                                             ‧ Type HL for use in class l, Division 2

■ Description

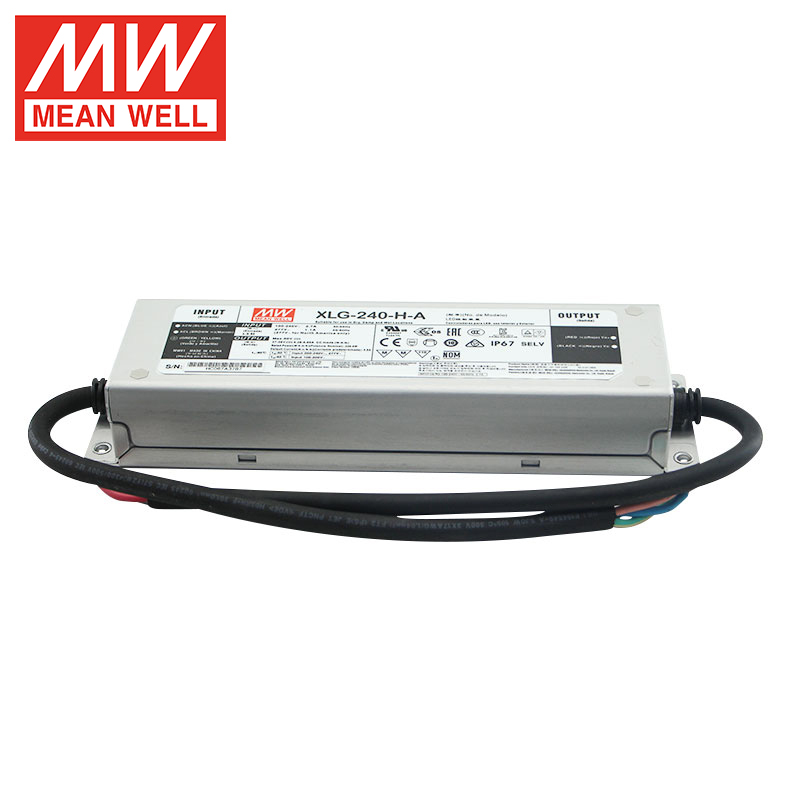

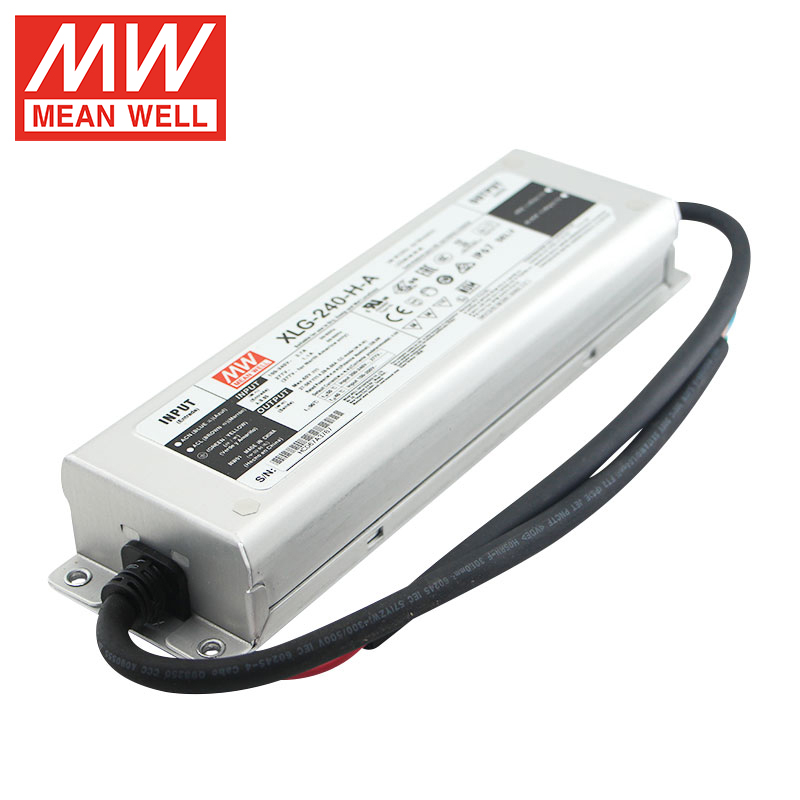

The XLG-240 series is a 240W LED AC/DC driver featuring the constant power mode. The XLG-240 operates from 100~305VAC and offers models with different rated currents ranging between 700mA and 6.66A. Thanks to the high efficiency of up to 93%, along with the fanless design, the entire series is able to operate via air convection. The design of the metal housing and IP67 ingress protection level for -40℃~+90℃ case temperature allows this series to fit both indoor and outdoor applications. Moreover, the innovative environment-adaptive capability enables this series to reliably power LEDs in almost any application environment, suitable for all kinds of sites where LED luminaires may be installed worldwide.

The XLG-240 is designed in accordance with the latest versions of IEC 61347/GB 19510.1 and UL 8750 international safety regulations. The output and dimming circuits are also completely isolated to ensure the safety of users and the luminaire system during installation.
