HLG Series     40~600W Constant Voltage + Constant Current LED Driver         WWW.CYNOPOWER.COM

■ Features                                                                          ■ Applications

‧ Constant Voltage + Constant Current mode output                                                ‧ LED street lighting

‧ Metal housing with class I design                                                                                ‧ LED high-bay lighting

‧ 1P67/IP65 rating for indoor or outdoor installations                                               ‧ Parking space lighting

‧ Function options: output adjustable via potentiometer，                        ‧ LED fishing lamp

  3 in 1 dimming                                                                                                             ‧ LED greenhouse lighting

‧ Typical lifetime >62000 hours                                                                                      ‧ Type “HL" for use in Class I, Division 2hazardous(Classified)location.

‧ 7 years warranty

■ Description

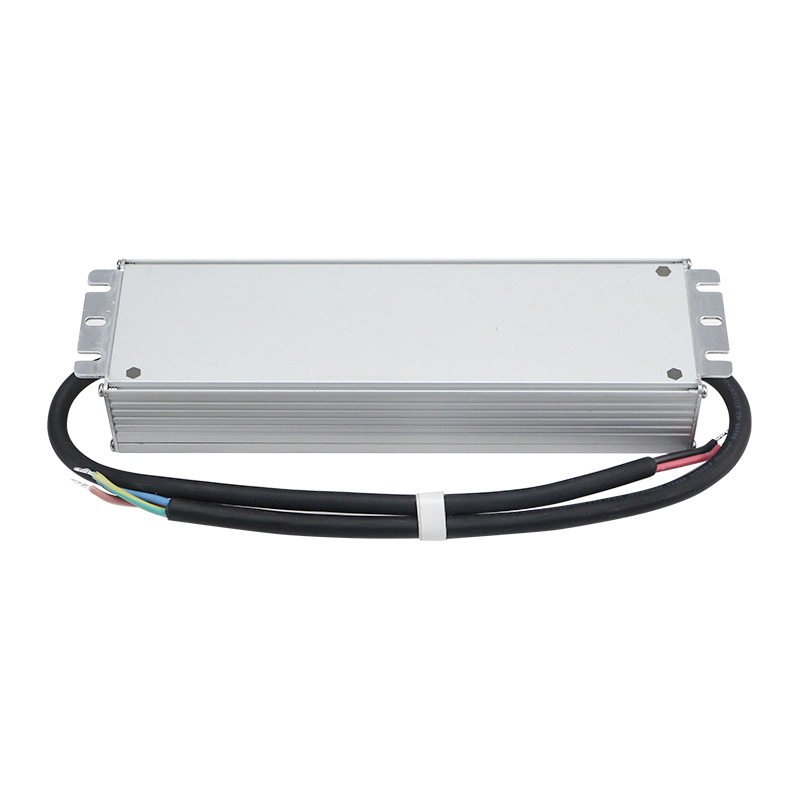

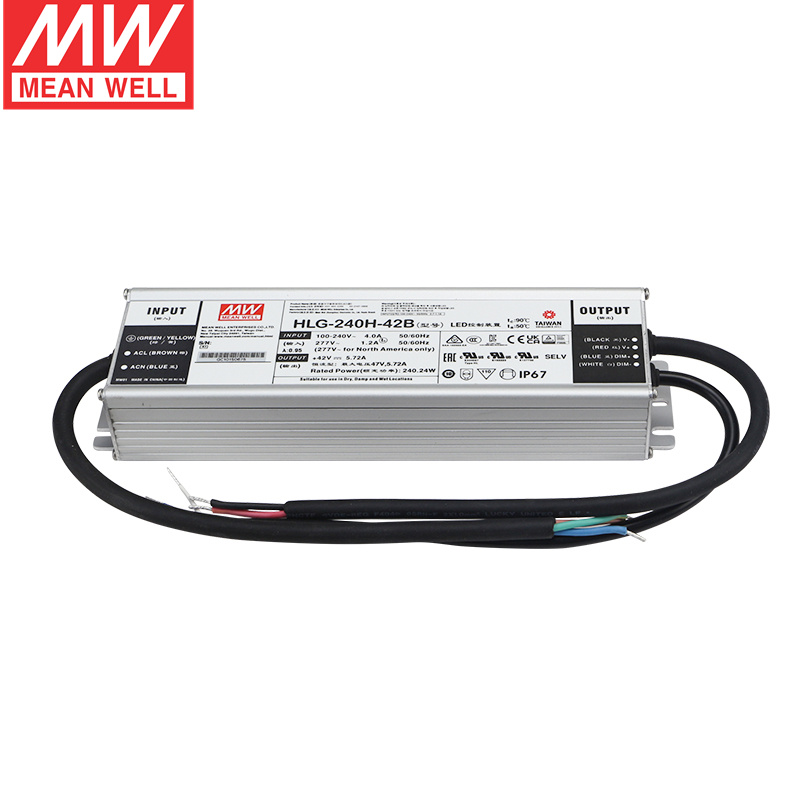

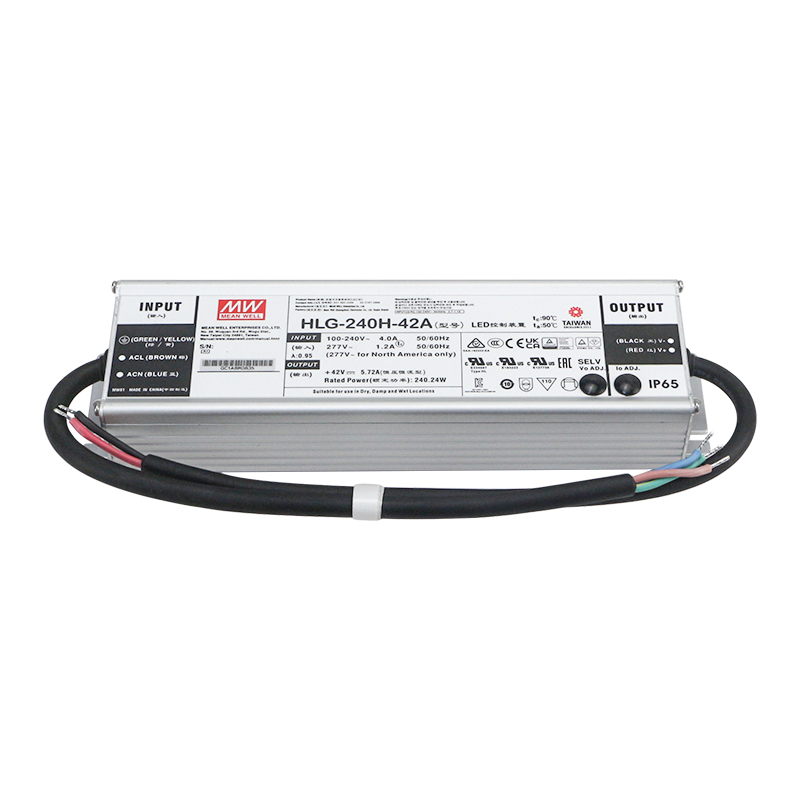

HLG-240H series is a 240W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-240H operates from 90 to 305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency of up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ to +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-240H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
